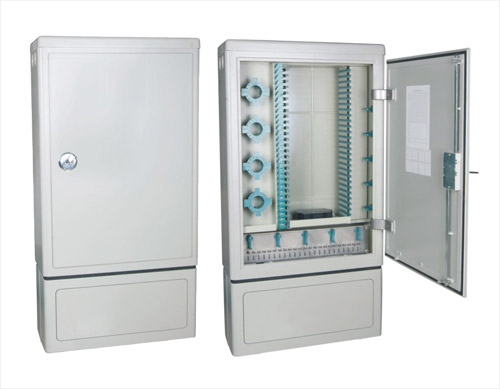

288 Cores SMC Outdoor Fiber Optic Cabinet

SMC Fiber Optic Outdoor Termination Cabinet IP65 With Splicing Tray

Quick Detail:

1. Dimension :H750*W360*D1550mm

2. 288 Core,24 pieces 12 core splicing tray

3. Made of SMC, high strength glass-fiber polyester with excellent performance of mechanical durability, anti-erosion, aging resistance and lightweight,flame-retardant.

4. Waterproof Grade:IP65

5. FC / SC / LC type adapters are adopted.

6. Capacity for 144core and 576core is available.

Description:

The cabinet has the functions of optical fiber cable splice, distribution, splitter holding, storage and dispatch. It has great performance of resisting the open-air environment and can resist severe climatic changes and serious working environment. The protection grade reaches IP65.

High pedestal of the cabinet has the advantage of large space so as to ensure bigger curvature radius when the cable is inlet and facilitate installation, operation and construction. Cable fixing cover type that is applicable to common and ribbon optical cable can be adopted for cable reinforcement if required by user.

FC / SC / LC type adapters are adopted. The installed adapter has an oblique angle of 40" so as to prevent eyes from direct shining of arc light.

The frame has excellent earth system.Flame-retardant material is adopted for plastic components in the cabinet.

Earth mode: the cabinet has two earth systems, one is protection earth by way of connecting the cable reinforcement with ground, and another is cabinet housing earth. The two earth systems are not connected with each other. They are separately connected with the ground of machinery house with their own earth wire.

Applications:

FTTx, FTTH, FTTB, FTTO, Telecom network, CATV.Used for connecting optical fiber and equipment of central office, convenient operation.

Specifications :
