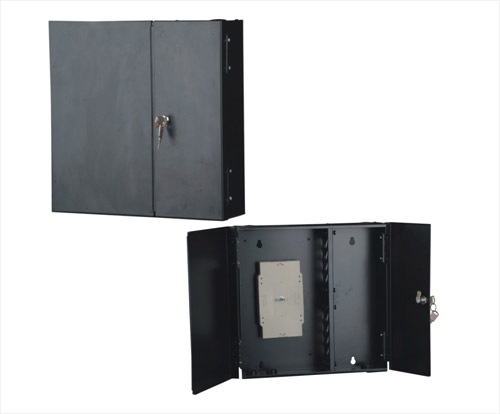

Wall-mount Fiber Optic Cable Terminal Enclosure

Double Door Wall Mounted Fiber Optic Termination Box with key

Quick Detail:

1. Dimension :W300*H300*D80mm

2. Capacity 24 Core,with splicing tray,wall mounting type.

3. Made of Cold Rolled Steel, with excellent performance of mechanical durability, anti-erosion, aging resistance and dustproof,flame-retardant.

4. Central adapter board is movable for easier installation

5. FC / SC / LC type adapters are adopted.

6. Capacity for 12/48/72 core is available.

Description:

The cabinet has functions of cable termination, splicing, distribution and cross-connection. Solid and fully-closed structure with the advantages of good performance of dust-proof, pleasing and neat appearance.

Easy installations: Wall mountable.

Ideal for indoor uses – cable entrances & exits located on both top and bottom. Lock provided on every cabinet ensures the safety of the fibers. The central adapter board separates the incoming cables and the exiting fibers. Central adapter board is movable for easier installation (for capacity over 48 cores.) Adapters are installed on our adapter holders, no screws need for installing any type adapters, which is very easy for future maintenance and keeps the transmission loss at low level.

Adoptable adapter types: FC, SC,LC/Duplex.

Applications:

• FTTx, FTTH, FTTB, FTTO, Telecom network, CATV.Provide fusion and storage appliance for optical cables,for indoor fiber optic cable distribution.

Specifications :
