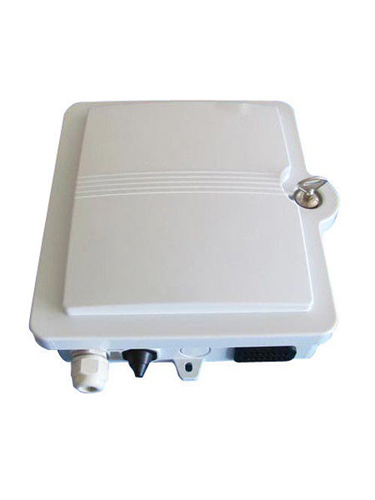

12 Core FTTH Outdoor Fiber Optic Terminal box with lock

12 Core Outdoor Fiber Optic Terminal box with lock IP65 Waterproof UV Protection

Quick Detail:

1. ABS material used ensures the body strong and light.

2. Protection Level: IP55.

3. Water-proof design for outdoor uses, lock provided for extra security.resistance and dustproof,flame-retardant.

4. Space saving! Double-layer design for easier installation and maintenances

5. Dimensions: 210mm x 250mm x 60mm (W x H x D)

6. Adapter Capacity: 12SC/FC simplex adapters or LC duplex adapters

Description:

Features:
 ABS material used ensures the body strong and light.
 Protection Level: IP55.
 Water-proof design for outdoor uses, lock provided for extra security.
 Easy installations: Ready for wall mount – installation kit provided.
 Adjustable adapter slotused – to suit different size pigtails.
 Space saving! Double-layer design for easier installation and maintenances:
 Lower layer for splicing, also suitable for mini splitters.
 Upper layer foradapters, connectors and fiber distribution.
 Cable fixing units provided for fixing the outdoor optical cable.
 Both cable glands and tie-wrapsaccessible.
 Pre-connectorized cables supported (pre-connected with fast-connectors).
 Bend radius protected and cable routing paths provided.

Dimensions and Capability:
 Dimensions: 210mm x 250mm x 60mm (W x H x D)
 Weight: 750g
 Adapter Capacity: 12SC/FC simplex adapters or LC duplex adapters.
 Cable Entrance: 2
 Cable Exit: 12 simplex drop cables (Pre-connectorized cables supported)

Applications:

• FTTx, FTTH, FTTB, FTTO, Telecom network, CATV.Provide fusion and storage appliance for optical cables,for indoor fiber optic cable distribution.
