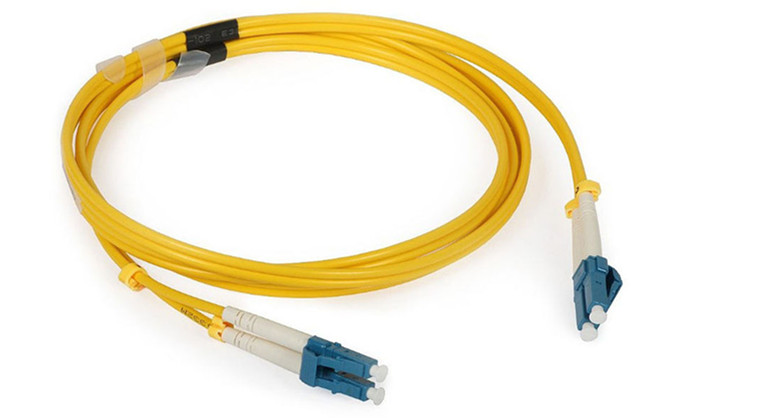

China PVC / LSZH Plenum Fiber Optic Patch Cord LC SM Single-mode / Multi-mode Fiber,PVC / LSZH Plenum Fiber Optic P...
FTTH Products
(210)
Network Cabling Products
(120)
Fiber cable of PVC / LSZH Plenum Fiber Optic Patch Cord LC SM Single-mode / Multi-mode Fiber are designed and manufactured in ISO9001 registered facility.
The product range covers both single mode and multimode pigtails and pigtails which are fully qualified to RoHS standards.
Assemblies are available in all major fiber optic connector types; a range of cable color options available.
Quick Detail:
(1)Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA, FDDI, ESCON
(2)Ferrule End-face: PC, UPC, APC
(3)Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3(10G)fiber
(4)Cable Quantity: Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
(5)Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
(6)Cable Length: 1, 2, 3 meter or customized
(7)Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
Description:
Various connector type available
Low back reflection loss
Compact size
Low insertion loss
High Return Loss
Diameter Φ 0.9mm, Φ 2.0mm, Φ 3.0mm Fiber Available
Single-mode Fiber or Multi-mode Fiber Available (For Simplex or Duplex)
Applications:
Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS (fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitted equipment
Defense combat readiness
Specifications :
| Parameter | Unit | FC, SC, LC/ Armoured fiber patch cord | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | 1310, 1510 | ||||||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable diameter | mm | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | ||||||||
