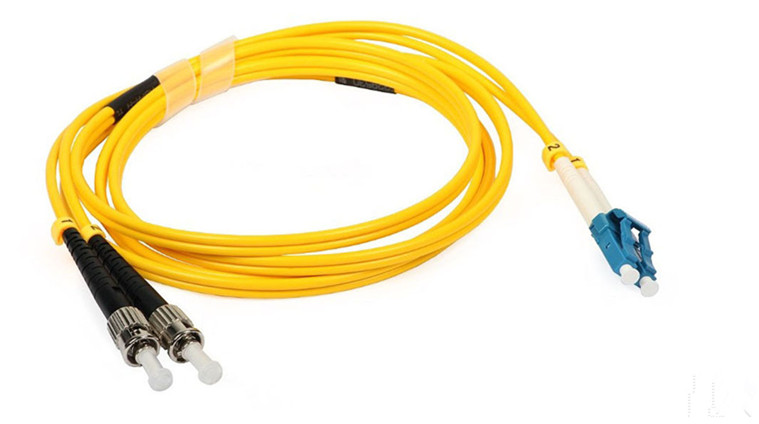

ST To LC Fiber Optic Patch Cord , Singlemode 9 Optical Fiber Patch Cord

Product Name: ST To LC Fiber Optic Patch Cord , Singlemode 9 Optical Fiber Patch Cord
Model NO.: YJ-036
Origin: China
Brand Name: YJ
Delivery Time: 10 Days
Minimum Order: 1 Bag
Supply Ability: 10000M/day
Quality System Certification: ISO,RHOS,UL,CE

Product Details: ST To LC Fiber Optic Patch Cord , Singlemode 9 Optical Fiber Patch Cord

We supply ST To LC Fiber Optic Patch Cord , Singlemode 9 Optical Fiber Patch Cord with very competitive prices, every single piece of ST To LC Fiber Optic Patch Cord , Singlemode 9 Optical Fiber Patch Cord is tested in the workshop before delivering to the customer.

Fiber cable of ST To LC Fiber Optic Patch Cord , Singlemode 9 Optical Fiber Patch Cord are designed and manufactured in ISO9001 registered facility.

The product range covers both single mode and multimode pigtails and pigtails which are fully qualified to RoHS standards.

Assemblies are available in all major fiber optic connector types; a range of cable color options available.

Quick Detail:

Place of Origin: Ningbo China (Mainland)

Certificates: ISO,ROHS,IEC,BELLCORE

Application: Telecommunication

Jacket: PE/PVC/LSZH

Jacket color: optional

Operating temperature: 40℃+85℃

Connector type: Simplex/Duplex

Surface polish: PC/UP/APC

Description:

Various connector type available

Low back reflection loss

Compact size

Low insertion loss

High Return Loss

Diameter Φ 0.9mm, Φ 2.0mm, Φ 3.0mm Fiber Available

Single-mode Fiber or Multi-mode Fiber Available (For Simplex or Duplex)

Applications:

Communication rooms

FTTH (Fiber to The Home)

LAN (Local Area Network)

FOS (fiber optic sensor)

Fiber Optic Communication System

Optical fiber connected and transmitted equipment

Defense combat readiness

Specifications :

Type of connector	ST/SC/FC	LC	E2000	MTRL
Insertion Loss(IL)(dB)	≤0.20	≤0.20	≤0.10	≤0.20
Max. IL(dB)	0.20	0.20	0.15	0.30
Return Loss(RL)	≥50	≥50	≥55	≥50
Durability(dB), ≥500times	≤10	≤10	≤0.1	≤0.10
Interchangeability(dB)	≤0.15	≤0.15	≤0.15	≤0.15
Standards	Telcordia, ANSI,IEC,TIA/EIA,NTT

Specifications

Parameters	Single Mode (SM UPC)	Multi Mode( MM PC)	Single Mode (SM APC)
Connector	SC,ST,FC,LC,MTRJ,MU,ESCON,E2000,DIN, D4,SMA,MPO,FDDI		SC,FC,LC
Connector type	Simplex/Duplex
Cable diameter	0.9mm/2.00mm/3.00mm
Insertion loss(IL)	≤0.30dB	≤0.30dB	≤0.30dB
Return loss(RL)	≥50dB	≥55dB	≥60dB
Operating temperature	40°C+85°C
Fiber length	Can be customized

Competitive advantages:

Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.

All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.

We wish to create better future of optical communication industry jointly with both new and existing customers.
