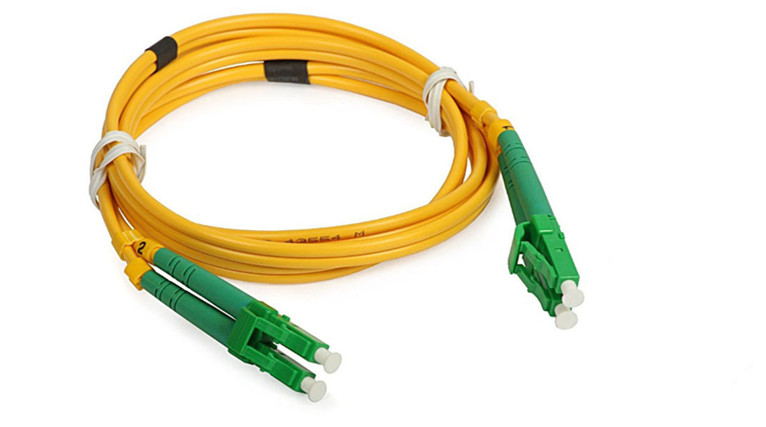

China LC / APC SM Fiber Optic Patch Cord 1M Insertion Loss 0.2dB 50UM / 125UM,LC / APC SM Fiber Optic Patch Cord 1M...
FTTH Products
(210)
Network Cabling Products
(120)
Fiber cable of LC / APC SM Fiber Optic Patch Cord 1M Insertion Loss 0.2dB 50UM / 125UM are designed and manufactured in ISO9001 registered facility.
The product range covers both single mode and multimode pigtails and pigtails which are fully qualified to RoHS standards.
Assemblies are available in all major fiber optic connector types; a range of cable color options available.
Quick Detail:
Model Number: LC-FC Fiber Patch Cord
Connector type: SC; FC; LC; ST; MU etc.
Ferrule end face: PC; UPC; APC
OM type: 9/125UM; 50/125UM; 62.5/125UM
Cable quantity: Simplex; Duplex; 6cores; 12cores; 16cores; 24cores
Cable length: 1M; 2M; 3M; 4M etc., can be customized
Cable type: PVC; LSZH; OM3; OFNR; OFNP; Plenum; Armored
Application: CATV, cabling system, ODF etc
Cable Dia: 3.0MM; 2.0MM; 0.9MM
Ferrule: Reinforced Zirconium dioxide
Description:
Various connector type available
Low back reflection loss
Compact size
Low insertion loss
High Return Loss
Diameter Φ 0.9mm, Φ 2.0mm, Φ 3.0mm Fiber Available
Single-mode Fiber or Multi-mode Fiber Available (For Simplex or Duplex)
Applications:
Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS (fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitted equipment
Defense combat readiness
Specifications :
| Model NO. | LC-FC Fiber Patch Cord |
| Style | LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.MU/APC Duplex MTRJ/Female, MTRJ/Male |
| Fiber Type |
9/125 SMF-28 or equivalent (Singlemode) OS1 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3 |
| Cable Type |
Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH |
| Polishing Manner | UPC,SPC,APC (8°& 6°) |
| Insertion Loss | ≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750 |
| Return Loss (For Singlemode) |
UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
| Repeatability | ±0.1dB |
| Operating Temperature | -40C to 85C |
| Geometry Requirement (For Singlemode) | Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
Competitive advantages:
