Fiber cable of FTTH CATV Optic fiber waterproof pigtail cable waterproof fiber optic pigtail are designed and manufactured in ISO9001 registered facility.
The product range covers both single mode and multimode pigtails and pigtails which are fully qualified to RoHS standards.
Assemblies are available in all major fiber optic connector types; a range of cable color options available.
Place of Origin: Ningbo China (Mainland)

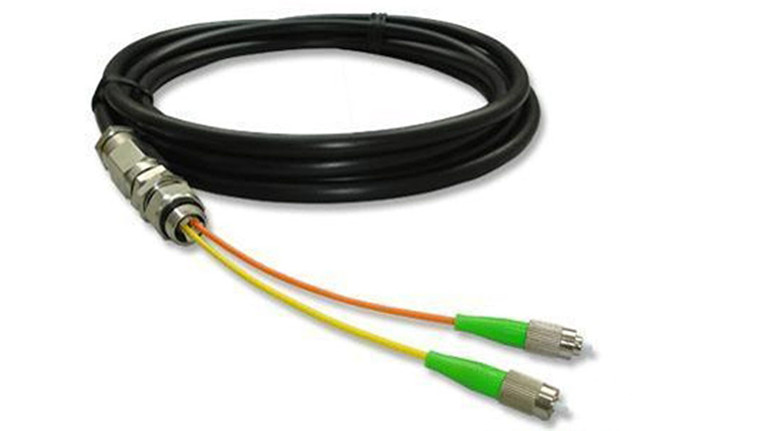

Model Number: 2 core FC/APC waterproof
Application: Communication
Type: Single-mode Fiber
Connection Structure: FC/APC
IL: Upc<=0.2dB;APC<=0.3dB
RL: Upc>=55dB;APC>=60dB
Polishing: APC
Description:
SC connectors are currently the most popular optical coupling elements due to simple matching (push-pull coupling with a snap), rectangular cross-section allowing dense packing of the connectors on the panel, and plastic construction (of course outside the ferrule).
Applications:
Fiber to The Point (FTTX)
Fiber to The Home (FTTH)
Passive optical network (PON)
Local Area Network (LAN)
Cable Television (CATV)Test Equipment
Specifications :
| Fiber Optic Pigtail | |
| Parameter & Specification | |
|
Mode |
Single – mode , Multi-mode |
|
Type |
FC, LC, SC, ST, MU, MTRJ, MPO, E2000 |
|
Polishing |
APC, UPC, PC; |
|
Insertion Loss(dB) |
≤ 0.2, ≤ 0.3 |
|
Return Loss(dB) |
≥ 50, ≥ 65 |
|
Exchangeability(dB) |
≤ 0.2 |
|
Repeatability(dB/1000times) |
≤ 0.2 |
|
Operation Wavelenghth(nm) |
850; 1310; 1550 |
|
Operating Temperature(° C) |
-30- +75 |
|
Storage Temperature(° C) |
-40- +85 |
|
Cable OD(mm) |
0.9, 2.0, 3.0 |
