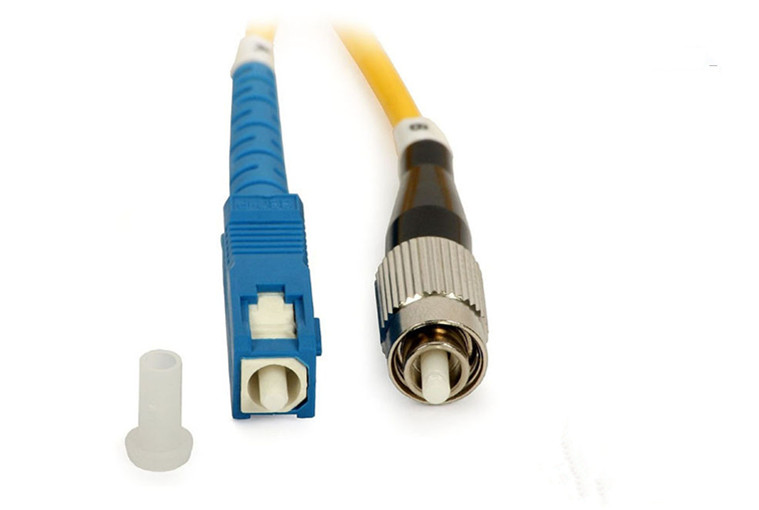

SC / FC Optical Patch Cord 9/125um Low insertion loss High Return Loss CATV Network

Product Name: SC / FC Optical Patch Cord 9/125um Low insertion loss High Return Loss CATV Network
Model NO.: YJ-019
Origin: China
Brand Name: YJ
Delivery Time: 10 Days
Minimum Order: 1 Bag
Supply Ability: 10000M/day
Quality System Certification: ISO,RHOS,UL,CE

Product Details: SC / FC Optical Patch Cord 9/125um Low insertion loss High Return Loss CATV Network

We supply SC / FC Optical Patch Cord 9/125um Low insertion loss High Return Loss CATV Networkwith very competitive prices, every single piece of SC / FC Optical Patch Cord 9/125um Low insertion loss High Return Loss CATV Network is tested in the workshop before delivering to the customer.

Fiber cable of SC / FC Optical Patch Cord 9/125um Low insertion loss High Return Loss CATV Network are designed and manufactured in ISO9001 registered facility.

The product range covers both single mode and multimode pigtails and pigtails which are fully qualified to RoHS standards.

Assemblies are available in all major fiber optic connector types; a range of cable color options available.

Quick Detail:

Model Number: SC/PC-FC/PC MM Simplex patch cord

Cable dia: 3.0mm ,2.0MM , 0.9MM

Type: UPC / PC / APC

Mode type: Multimode

Core quantity: simplex,

Dimension: customized

Cable color: Orange

Available type: FC SC ST LC MU MTRJ E2000 D4 ...

Description:

Various connector type available

Low back reflection loss

Compact size

Low insertion loss

High Return Loss

Diameter Φ 0.9mm, Φ 2.0mm, Φ 3.0mm Fiber Available

Single-mode Fiber or Multi-mode Fiber Available (For Simplex or Duplex)

Applications:

CATV System Telecommunications

Optical Networks

FTTH (Fiber to the Home)

High speed transmission Systems

Testing instruments

Specifications :

Item	Mode Type	PC	SPC	UPC	APC
Insertion Loss	SM	≤0.25dB	≤0.20dB	≤0.20dB	≤0.20dB
Insertion Loss	MM	≤0.30dB	≤0.20dB	≤0.20dB	≤0.30dB
Return Loss	SM	≥45dB	≥50dB	≥55dB	≥65dB
Return Loss	MM	≥35dB	≥35dB	≥35dB	≥35dB
Repetition Test		Additional Loss≤0.1dB,Reture Loss Variability<5dB
Temperature Stability(-40°C~85°C)		Additional Loss≤0.2dB,Reture Loss Variability<5dB
Operating Temperature		-40°C~+75°C
Storage Temperature		-40°C~+85°C
-Option:CableDiameters;0.9,2mm,3mm&others
-Type:simplex,duplex,Matrial Type:pvc,hytrel,LSZH,OFNP,OFNR

Competitive advantages:

Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.

All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.

We wish to create better future of optical communication industry jointly with both new and existing customers.
