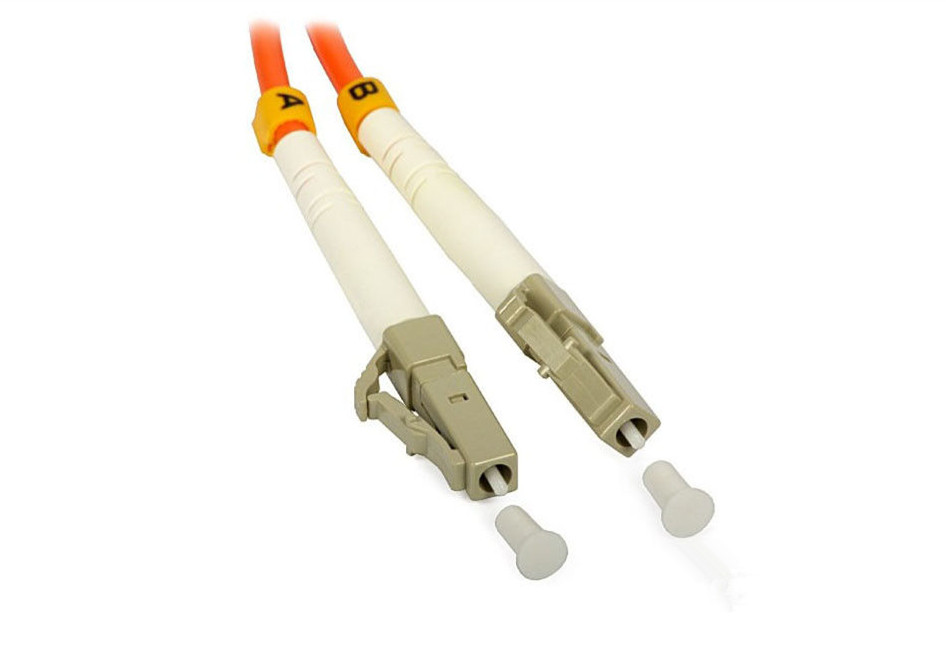

LC Optical Patch Cord 62.5/125 Multimode in CATV System Telecommunications

Product Name: LC Optical Patch Cord 62.5/125 Multimode in CATV System Telecommunications
Model NO.: YJ-020
Origin: China
Brand Name: YJ
Delivery Time: 10 Days
Minimum Order: 1 Bag
Supply Ability: 10000M/day
Quality System Certification: ISO,RHOS,UL,CE

Product Details: LC Optical Patch Cord 62.5/125 Multimode in CATV System Telecommunications

We supply LC Optical Patch Cord 62.5/125 Multimode in CATV System Telecommunications with very competitive prices, every single piece of LC Optical Patch Cord 62.5/125 Multimode in CATV System Telecommunications is tested in the workshop before delivering to the customer.

Fiber cable of LC Optical Patch Cord 62.5/125 Multimode in CATV System Telecommunications are designed and manufactured in ISO9001 registered facility.

The product range covers both single mode and multimode pigtails and pigtails which are fully qualified to RoHS standards.

Assemblies are available in all major fiber optic connector types; a range of cable color options available.

Quick Detail :

Core Quantity : Simplex / Duplex

Model Number : LC/PC-LC/PC

Type : UPC ,APC, SPC

Mode Type : SM / MM

Cable Dia : 2.0mm ,3.0mm,0.9mm

Available Type : FC SC ST LC MU MTRJ E2000 D4 ...

Dimension : customized

Cable Color : Yellow ,Orange,Aqua, Grey ect...

Description :

Various connector type available

Low back reflection loss

Compact size

Low insertion loss

High Return Loss

Diameter Φ 0.9mm, Φ 2.0mm, Φ 3.0mm Fiber Available

Single-mode Fiber or Multi-mode Fiber Available (For Simplex or Duplex)

Applications:

CATV System Telecommunications

Optical Networks

FTTH (Fiber to the Home)

High speed transmission Systems

Testing instruments

Specifications :

Item	Mode Type	PC	SPC	UPC	APC
Insertion Loss	SM	≤0.25dB	≤0.20dB	≤0.20dB	≤0.20dB
Insertion Loss	MM	≤0.30dB	≤0.20dB	≤0.20dB	≤0.30dB
Return Loss	SM	≥45dB	≥50dB	≥55dB	≥65dB
Return Loss	MM	≥35dB	≥35dB	≥35dB	≥35dB
Repetition Test		Additional Loss≤0.1dB,Reture Loss Variability<5dB
Temperature Stability(-40°C~85°C)		Additional Loss≤0.2dB,Reture Loss Variability<5dB
Operating Temperature		-40°C~+75°C
Storage Temperature		-40°C~+85°C
-Option:CableDiameters;0.9,2mm,3mm&others
Type:simplex,duplex,Matrial Type:pvc,hytrel,LSZH,OFNP,OFNR

Competitive advantages:

Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.

All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.

We wish to create better future of optical communication industry jointly with both new and existing customers.
