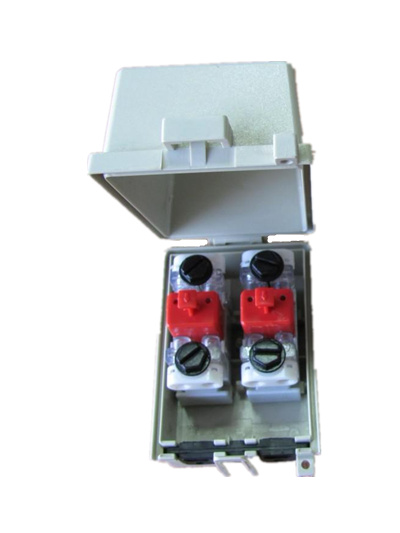

2Pair STB Module Distribution Points Box

Product Name: 2Pair STB Module Distribution Points Box
Model NO.: YJ-2010-2
Origin: China
Packing: 160pcs/box
Brand Name: YJ
Delivery Time: 10
Minimum Order: 1000
Quality System Certification: RoHS

Product Details: 2Pair STB Module Distribution Points Box

Plastic VX-SB Network Distribution Box with 3Pole Arrester Protection STB Module for Telecom Outside Plant

Quick Detail:

1. Outdoor DP Box Plastic for STB Modules 2pairs

2. Material:PC,with steel rails.

3. Cable grommets for wire entry and exit is for waterproof.

4. For subscribe connector unit protection over voltage

5. With lock

6. Application:Ourdoor or indoor

Description:

Material:PC,ABS,with steel rails.

Empty distribution box for 2pair dropwire module(STB module),offerring good connection environment for telecommunication.

The similar DP box for telecommunication consists for 1pair,2pair subscribe connector,4pair STB module distribution,10pair subscriber terminal box and 20pair subscriber termination box.

Application for replacing Tyco VX-SB subscribe connector unit terminal blocks,Connecting 1 pair module without protection,module with surge protection (gas-discharge instrument with surge protection to 230V) and module with overvoltage and overcurrent (overvoltage to 230V, and by two resistors PTC, which protect from the overcurrent).

The subscriber connector termination box consists of a rectangular box base with a cover and the connection module secured to the base.The top and base are hinged together, and the top is easilyremovable to facilitate working in cramped conditions.The cable grommets for wire entry and exit may be adjusted to conductor size and are also removable.A metal screw is provided for grounding purposes.

The different function subscriber connector was definitely distinguished by the color .We can offer the other two types subscriber connectors for your selection:

The STB module with grey plug-in module is for without protection.

The STB module with orange plug-in module is for with protection both over voltage and over currency,with both 3pole arrester and PTC inside .

Applications:

Subscriber Connector Unit VX-SB for telecom outside plant.The connection of an outdoor to an indoor drop wire. It allows for circuit testing in both network directions.The box provides environmental protection.For mounting to walls,wood,metal or concrete poled

Specifications :

Outdoor waterproof Distribution Box :The type of STB module is required as your application. -G is for YH-5027 unprotected, -R is for YH-5028 with GDT protection, -O is for YH-5029 with GDT and PTC protection. standard with expansion bolt for wall mounted.The accessories for pole mounted is on requirement.
Item No	Description
YJ-2010-1	1pair DP box for STB module (EMPTY) 954550mm
YJ-2010-1G	1pair DP box with STB module(YH-5027) 954550mm
YJ-2010-1R	1pair DP box with STB module(YH-5028) 954550mm
YJ-2010-1O	1pair DP box with STB module(YH-5029) 954550mm
YJ-2010-2	2pair DP box for STB module (EMPTY) 1459575mm
YJ-2011	10pair DP box for STB module (EMPTY) 19519585mm
YJ-2012	20pair DP box for STB module (EMPTY) 35019095mm
