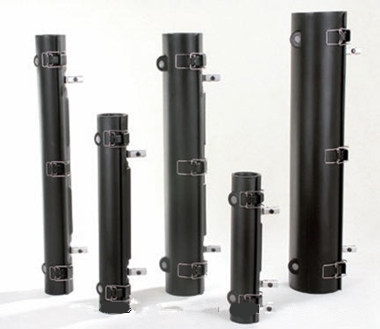

Aerial In-line Free Breathing Strand-Mount Copper Cable Closures with Terminal Bracket

Product Name: Aerial In-line Free Breathing Strand-Mount Copper Cable Closures with Terminal Bracket
Model NO.: YJ-A001
Origin: China
Brand Name: YJ
Delivery Time: 15days
Minimum Order: 100pcs
Supply Ability: 1000pcs/day
Quality System Certification: ISO,RHOS,UL,CE

Product Details: Aerial In-line Free Breathing Strand-Mount Copper Cable Closures with Terminal Bracket

Description:
Aerial Closures are used for continuity protection of main cable and distribution cable. They are
applicable to new build or maintenance of aerial cables.
Features:

The one piece free breathing construction provides an excellent housing for cable splices in

the harshest of environments.

Free breathing and suitable for straight, butt and branch splices of non-pressurised

communication cables

Material: High-density polyethylene, strong and durable, UV-proof, anti-aging. The metal

parts are made of stain steel material making good looking.

The closure consists of three main components: a central body and two end seal pieces.
The end seal pieces provide a quick and easy method of installing cables, and have good

waterproof performances. Cable supports can also be provided.

After splice preparation and bonding, two closure end pieces are placed over the cable. The

central body is then closed over the end pieces and the splice to provide a secure cover. The body
is locked in place by bolts along its bottom (metal latches are available).

Suitable for splicing module and splicing connectors.

 Good structure, easy installation, convenient maintenance. All components are inside of
closures keeps secure.
Technical Specifications:

1.Environment Temperature: -40℃~+60℃.

2.Environment Atmosphere: 80~106Mpa.

3.Relative Humility: ≤95%.

4.No crack, no drop of spring latches after 200 times opening and closing.

5.No pull-off of cable after 2 hours of d/45×100N axial tension test.

	Dimensions
Connection Max Diameter	40	45	56	66	91
Main Cable Diameter(mm)	5-14	5-18	5-30	5-35	5-44
Branch Cable Diameter(mm)	5-12	5-14	5-20	5-25	5-34
Connection Port Distance(mm)	200	250	356	493	533
Closure Size(D*L)	Φ57×280	φ60×350	φ80×482	φ90×560	φ117×660
Continuity Cable Capacity	D0.5—30 Pair	D0.5—50 Pair	D0.5—150 Pair	D0.4—400 Pair D0.5—200 Pair	D0.4—600 Pair D0.5—400 Pair
