IDC Module Gel - Filled Network Distribution Box 3M Quick Connect System

Product Name: IDC Module Gel - Filled Network Distribution Box 3M Quick Connect System
Model NO.: YJ-2810-B50
Origin: China
Packing: 20piece/box
Brand Name: YJ
Delivery Time: 20 days
Minimum Order: 500 pieces
Supply Ability: 5000pieces/week
Quality System Certification: ISO,RHOS,UL,CE

Product Details: IDC Module Gel - Filled Network Distribution Box 3M Quick Connect System

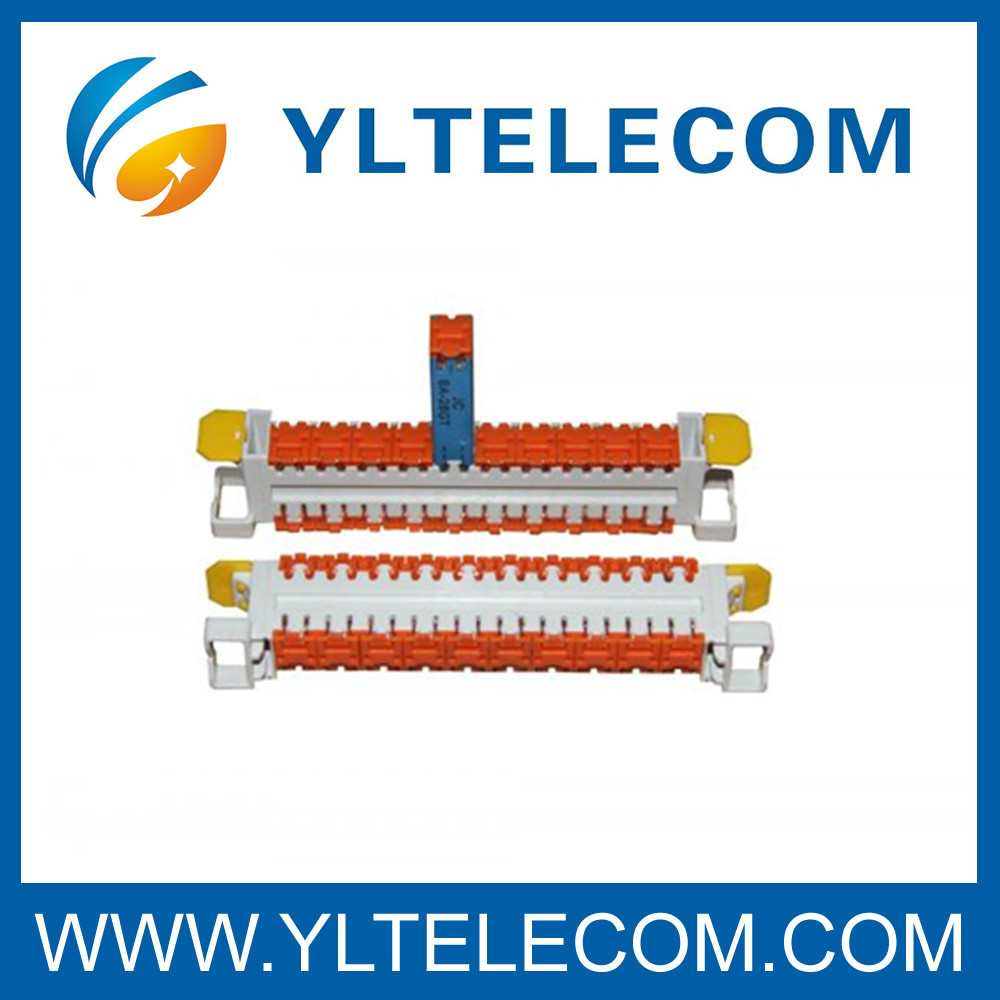

3M Quick Connect System Cat.5 QCS 50Pair Block 2810 IDC Connection Toolless Module Gel-filled

Quick Detail:

1. 3M DP box with 50pair QCS module as one block,standard back mount frames 8/10 pairs (Pitch 16mm).

2, Tool-less Jumpering ,Simple termination practices increases technician productivity.

3, Gelled interconnect,gel-filled.High integrity connection for network reliability and broadband performances.

4, Visibility to Jumpers.Cables are managed from the top and jumpers from the side.

5,Category 5 performance,cat.5 .Reliable high-speed data transmission .

6, Pair-at-once termination

7, Low termination force

8. Material: UL94V0 PBT and ABS

Description:

The YJ-2810 module is a simple-to-use, tool-less copper block,equal to 3M 2810B module.Can be with single pair protection unit YJ-2814SP and Single pair test probe YJ-2827 .Application in cross-connect cabinets or at the edge of the network, the gel-filled, Cat. 5 compliant 2810 system is the solution.Wire range IDC contacts – solid copper conductor 0.4 mm to 0.6 mm 26 AWG to 22 AWG.It is an ideal solution for outside plant applications.

3M DP box with 30Pair Tool-less Quick Connect Module Block

3M DP box with 50Pair Tool-less Quick Connect Module Block

3M DP box with 100Pair Tool-less Quick Connect Module Block

Category 5 transmission performance IDC connection module YJ-2810B. This module can be used in any modern network and is fully compatible with all kind of application,we offer the 50pair termination block with 3M distribution box.Waterproof and flame resistant feature ensure the application for outdoor .We also offer the YJ-8082 tool for Wire termination and wire removal .

Visibility to Jumpers.Cables are managed from the top and jumpers from the side. The base of the modules offers cable and jumper strain relief facilities. Straight IDC contact design offers reliability and outstanding performance like multiple termination, wire retention and gas-tight connection. The module can connect solid copper conductors in a range of diameters from 0.4mm to 0.8mm with a maximum insulation sheath of 1.5mm.

Multiple terminations are possible with all kind of solid conductor gauges in the range of 0.4mm to 0.8mm termination and removal of wires with the same tool reliable .Easy to use improved wire retention (straight IDC) high rigidity and contact pressure on the conductor gas-tight connection high-density installation thanks to 16mm compact (1240 pairs on a 2 meters vertical frame) comprehensive range of protection circuits compatible with all STG accessories.

YJ-2827 Single pair test probe for YJ-2810A 10pair quick connect modules.

We offer various modules in telecommunication application, the products includes 5pair LSA type connection and disconnection module, 8pair and 10 pair connection disconnection krone module,back mount function and profile function, switching module,10pair Earth connection module, high band modules, 3M type quick connect module, 25pair splicing module, 10pair STG module, Subscriber terminal block, 50pair and 100pair krone block tag, back-mount frames, and other related accessories like LSA patch cord for disconnection and switching modules,earth bar,dust cover,label holder and so on.

The disconnection type CT module have provision of testing the electrical parameters of the exchange and distribution sides by insertion of test plug without actually disconnecting the jumper wire or the cable from the termination module.

Applications:

High speed LAN and WAN systems,used to connect the Telecom and Data wires with punch down tools.

Specifications :

Product	3M Quick Connect System50Pair DP BOX
Mechanical Performance	Insertion force : 40~75N
	Pull Out Force : F≥25N(axial) F≥7.5N(radial)
	IDC Life : 200 times(20-26 AWG Solid wire) minimum
	Copper Conductor Diameter: Φ0.4~Φ0.8(mm)
Environment Characteristic	Storage Tempreture: 40 to 70°C
	Operating Temperature : 10 to 60°C
	Relative Humidity: 95%, noncondition
Electrical Performance	Insulation resistance: 1000 Mohms minimum
	Contact resistance :7 mohms maximum
	Dielectric intensity: AC 1000 Vrms 50Hz or 60Hz in 60s

Cat.5e Performance Toolless Quick Connect Connection Module with Gel YJ-2810B ,widely asked for replacement of 3M Quick connect module.There is single pair test probe YJ-2827 for test.Highly price performance offered,with good quality.

We make sure that every product is 100% tested in the factory before packing.
