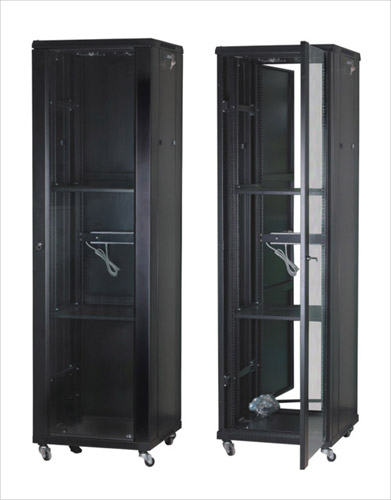

Network Cabinet 19" 18U to 45U 600*600mm

Steel Floor Standing Network Serve Cabinet 19”with Glass Door

Quick Detail:

1. Material:Cold rolled steel with powder coat finishing

2. 19 inch standard floor Cabinet,available from 18U to 45U.

3. Lockable key type and reversible quick-release front and rear doors.

4. Front door with safety but toughened glass,easy to check the status inside of the cabinet without open the door.

5. Perforated steel rear door

6. Size: Wideth:600mm or 800mm.Depth:600mm,800mm or 1000mm.

7. Packing:Whole pack or in Bulk

Description:

This cost-effective range of server cabinets is available in a combination of 600mm or 800mm widths with a 600mm,800mm or 1000mm depth. All cabinets are available in 18U to 45U heights with either a glass or mesh front door.

Complied with Standards:

ANSI/EIA RS-310-DIEC297-2DIN41494;PART1DIN41494;PART7, ETSI standard.

Thickness:

Mounting Rail: 1.5mm,Frame of front door: 1.5mm,Mounting Rail:1.5mm,

Others:1.0 or1.2mm

Standard Accessory :

A.screw and nut. B.with 4pcs castor and adjusters. C.with 2 fixed shelf. D.with 2 fans for 600*600 type, 4fans for 600*800 and 600*1000type. E.1 piece PDU

• Lockable and reversible quick-release front and rear doors
• Perforated steel rear door
• Two lockable quick-release lift-out steel side panels
• Fully adjustable front & rear profiles with U height markings
• Removable roof panel for flood wiring or cooling
• Adjustable size bottom cable access aperture
• Manufactured from SPCC cold rolled steel
• Finished in RAL9004 black

Applications:

Data and telecom network, LAN and file server workstation or computer control center system.
