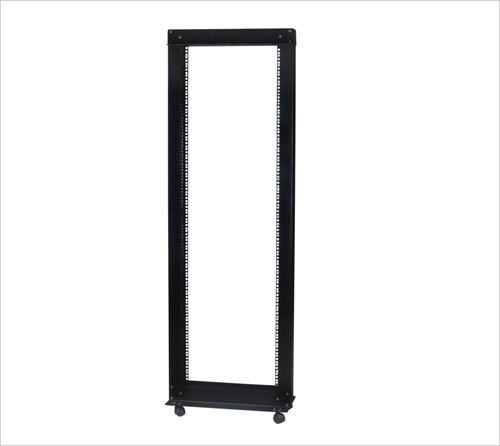

19 Inch Open Cabinet 19" 12U 18U 20U 24U Network Frame

19 Inch Telecom Network Open Frame Open Rack For 12U 18U 20U 24U

Quick Detail:

1. Material:Cold rolled steel with powder coat finishing

2. 19 inch standard floor open network server racks45U.

3. With fixing panels

4. Screw type

5. With feet

6. Size: 12U, 18U, 20U, 24U

7. Packing:Whole pack or in Bulk

Description:

Features:
1. Front door and side door easy to install and maintain.
2. Cable entry on the top cover and bottom panel with adjustable sizes.
3.  Popular front door with toughened glass.
4. Painting color:black and grey on your requirement .

Technical Parameters:
1. Main material: Cold rolled steel.
2. Surface finish:Degreasing, pickling, phosphoric, powder coated.
3. Degree of protection:IP20.

Accessories:
Power Panel ;Fixed Shell;Cabinet Fans.

This cost-effective range of server cabinets is available in a combination of 600mm or 800mm widths with a 600mm,800mm or 1000mm depth. All cabinets are available in 18U to 45U heights with either a glass or mesh front door.

Complied with Standards:

ANSI/EIA RS-310-DIEC297-2DIN41494;PART1DIN41494;PART7, ETSI standard.

Thickness:

Mounting Rail: 1.5mm,Frame of front door: 1.5mm,Mounting Rail:1.5mm,

Others:1.0 or1.2mm

Standard Accessory :

A.screw and nut. B.with 4pcs castor and adjusters. C.with 2 fixed shelf. D.with 2 fans for 600*600 type, 4fans for 600*800 and 600*1000type. E.1 piece PDU

 Lockable and reversible quick-release front and rear doors

 Perforated steel rear door

 Two lockable quick-release lift-out steel side panels

 Fully adjustable front & rear profiles with U height markings

 Removable roof panel for flood wiring or cooling

 Adjustable size bottom cable access aperture

 Manufactured from SPCC cold rolled steel

 With Ventilated door which is better for abstraction of heat .

Applications:

Data and telecom network, LAN and file server workstation or computer control center system.

Specifications :
