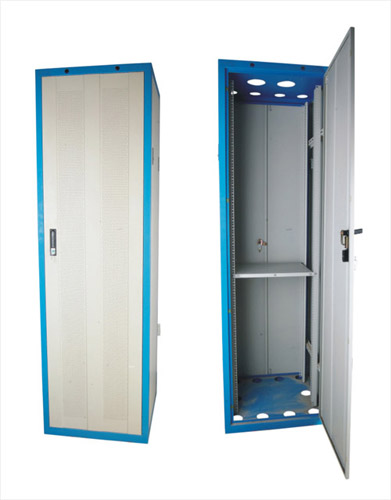

Integrated Distribution Cabinet Floor-standing Cabinets 19" without feet

Floor Network Serve Cabinet 19”with fan and plate Grey Wild Steel

Quick Detail:

1. Material:Cold rolled steel with powder coat finishing

2. 19 inch standard floor Cabinet,available from 18U to 45U.

3. Lockable key type and reversible quick-release front and rear doors.

4. With Ventilated door which is better for abstraction of heat .

5. Perforated steel rear door

6. Size: Width: 600mm or 800mm.Depth:600mm,800mm or 1000mm.

7. Packing:Whole pack or in Bulk

Description:

This cost-effective range of server cabinets is available in a combination of 600mm or 800mm widths with a 600mm,800mm or 1000mm depth. All cabinets are available in 18U to 45U heights with either a glass or mesh front door.

Complied with Standards:

ANSI/EIA RS-310-DIEC297-2DIN41494;PART1DIN41494;PART7, ETSI standard.

Thickness:

Mounting Rail: 1.5mm,Frame of front door: 1.5mm,Mounting Rail:1.5mm,

Others:1.0 or1.2mm

Standard Accessory :

A.screw and nut. B.with 4pcs castor and adjusters. C.with 2 fixed shelf. D.with 2 fans for 600*600 type, 4fans for 600*800 and 600*1000type. E.1 piece PDU

• Lockable and reversible quick-release front and rear doors
• Perforated steel rear door
• Two lockable quick-release lift-out steel side panels
• Fully adjustable front & rear profiles with U height markings
• Removable roof panel for flood wiring or cooling
• Adjustable size bottom cable access aperture
• Manufactured from SPCC cold rolled steel
• With Ventilated door which is better for abstraction of heat .

Applications:

Data and telecom network, LAN and file server workstation or computer control center system.

Specifications :
