Descriptions

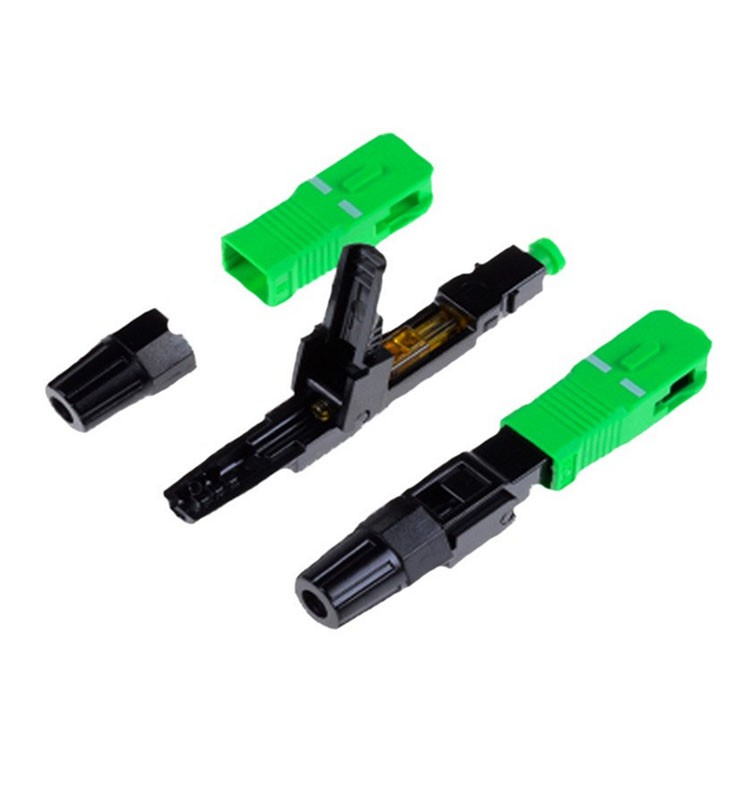

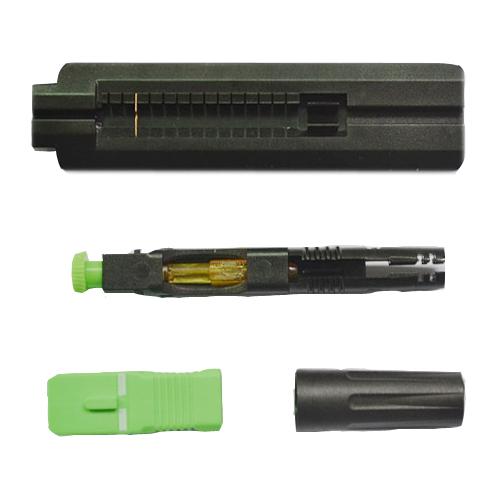

SC/APC SM Fast Connector is designed inside ferrule with fiber stuff and pre-polishing in the factory. It provides a perfect ferrule endface quality. This has great help to protect user`s equipment interface and improves the connector loss.
Features
1. Easy to operate can save time.
2. 100% qualified, reduce the maintenance cost.
3. Easy to assembling with mechanical splice and no polishing.
4. High stablity ,low insertion loss ,high return loss.
Applications
Optical Distribution Frame
Optical Network Equipments
FTTH, CATV
|
ITEM |
Technical Parameters |
|
Applicable for |
Drop cable. Indoor cable |
|
Optical fiber diameter |
125μm ( 657A & 657B ) |
|
Tight buffer diameter |
900μm |
|
Fiber mode |
Single mode |
|
Polishing Type |
UPC or APC |
|
Operation time |
About 120s(no fiber cut) |
|
Insert loss |
≤ 0.3dB(1310nm & 1550nm) |
|
Return loss |
≥50dB |
|
Fastening strength of naked fiber |
>5 N |
|
Fastening strength of naked fiber holder |
>10 N |
|
Tensile strength |
>50 N |
|
Using temperature |
-40~+75℃ |
|
On-line tensile strength (20 N) |
△ IL ≤ 0.5dB △ RL ≤ 5dB |
|
Mechanical durability (500 times) |
△ IL ≤ 0.5dB △ RL ≤ 5dB |
|
Drop-off test (drop-off height 4m, once per direction, totally 3 times) |
△ IL ≤ 0.5dB △ RL ≤ 5dB |
