Fiber Optical LC/UPC Quick Connectors

Product Name: Fiber Optical LC/UPC Quick Connectors
Model NO.: YJ-9005
Origin: China
Brand Name: Youjet
Delivery Time: 15days
Minimum Order: 1pcs
Supply Ability: 10000pcs/day
Quality System Certification: ISO9001, RoHS, CE, UL

Product Details: Fiber Optical LC/UPC Quick Connectors

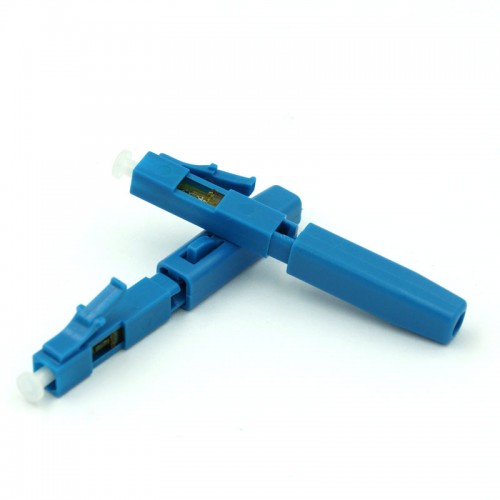

Fiber Optical LC/UPC Quick Connectors

Descriptions

Field Assembly Optical Connector (FAOC), or Fast connector is a perfect solution for filed working and FTTH connection. It is widely used for where need to quick connection, providing a quick assembly and stable performance. When engineers work in field for installation, maintenance, repair of optical fiber, or FTTH indoor terminate, they can use it easily because it has no epoxy, no polishing.

LC/UPC SM Fast Connector is designed inside ferrule with fiber stuff and pre-polishing in the factory. It provides a perfect ferrule endface quality. This has great help to protect user`s equipment interface and improves the connector loss.

Features

One-piece connector or attenuator

Inside ferrule with fiber stuff and pre-polishing

Field installable, quich connection, easy for operation

No epoxy, no polishing, no adhesive, no electricity required

High performance and high reliability

Simply and easy fixed fiber or cable

Cable Tensile complied with Telcordia GR-326-CORE

Applications

Optical Distribution Frame

Optical Network Equipments

FTTH, CATV

Specifications

ITEM	Technical Parameters
Applicable for	Drop cable. Indoor cable
Optical fiber diameter	125μm ( 657A & 657B )
Tight buffer diameter	900μm
Fiber mode	Single mode
Polishing Type	UPC or APC
Operation time	About 120s(no fiber cut)
Insert loss	≤ 0.3dB(1310nm & 1550nm)
Return loss	≥50dB
Fastening strength of naked fiber	>5 N
Fastening strength of naked fiber holder	>10 N
Tensile strength	>50 N
Using temperature	-40~+75℃
On-line tensile strength (20 N)	△ IL ≤ 0.5dB △ RL ≤ 5dB
Mechanical durability (500 times)	△ IL ≤ 0.5dB △ RL ≤ 5dB
Drop-off test (drop-off height 4m, once per direction, totally 3 times)	△ IL ≤ 0.5dB △ RL ≤ 5dB
