Descriptions

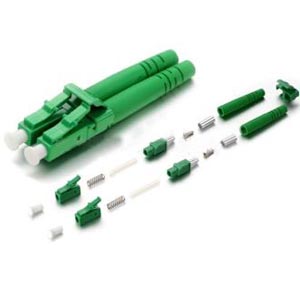

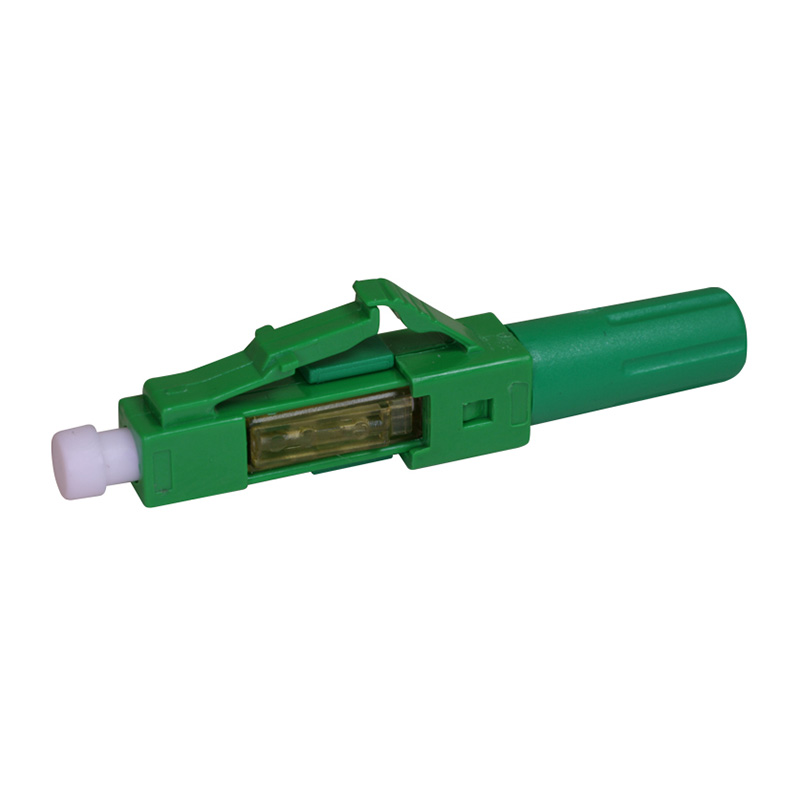

Fiber Optic LC/APC Fast Connectors designed for FTTH is a new generation of fiber con nector used in assembly.
It can provide Open flow and Precast type of products, whose optical and mec hanical specification meets the standard optical fiber connector.
It is designed for high quality and high efficiency for installation.the structure of crimping position is a unique design,
and need not gluing, polishing neither any consumables.adopted fiber preinst alled structure, and convenient for field.
Cable Tensile complied with Telcordia GR-326-CORE
FTTH, CATV
|
ITEM |
Technical Parameters |
|
Applicable for |
Drop cable. Indoor cable |
|
Optical fiber diameter |
125μm ( 657A & 657B ) |
|
Tight buffer diameter |
900μm |
|
Fiber mode |
Single mode |
|
Polishing Type |
UPC or APC |
|
Operation time |
About 120s(no fiber cut) |
|
Insert loss |
≤ 0.3dB(1310nm & 1550nm) |
|
Return loss |
≥50dB |
|
Fastening strength of naked fiber |
>5 N |
|
Fastening strength of naked fiber holder |
>10 N |
|
Tensile strength |
>50 N |
|
Using temperature |
-40~+75℃ |
|
On-line tensile strength (20 N) |
△ IL ≤ 0.5dB △ RL ≤ 5dB |
|
Mechanical durability (500 times) |
△ IL ≤ 0.5dB △ RL ≤ 5dB |
|
Drop-off test (drop-off height 4m, once per direction, totally 3 times) |
△ IL ≤ 0.5dB △ RL ≤ 5dB |
