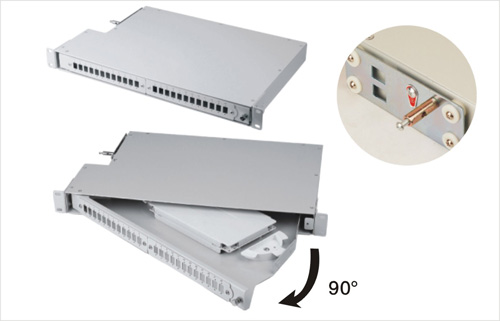

90 Degree Rotatable Fibre Patch Panel

Product Name: 90 Degree Rotatable Fibre Patch Panel
Model NO.: YJ-0040
Origin: China
Packing: 5set/box
Brand Name: YJ
Delivery Time: 10 Days
Minimum Order: 10 Piece/Pieces

Product Details: 90 Degree Rotatable Fibre Patch Panel

90 Degree Rotatable Fibre Optic Termination and Distribution Patch Panel For ODF

We supply 90 Degree Rotatable Fibre Patch Panel with very competitive prices, every single piece of 19inch Patch Panel is tested in the workshop before delivering to the customer.

Fiber cable of 19inch Patch Panel are designed and manufactured in ISO9001 registered facility.

The product range covers both single mode and multimode pigtails and pigtails which are fully qualified to RoHS standards.

Assemblies are available in all major fiber optic connector types; a range of cable color options available.

Quick Detail:

1. 19inch,1U (2U, 3U) is also offered.

2. Capacity 24 Core,with splicing tray,rack mounting type.

3. Made of Cold Rolled Steel, with excellent performance of mechanical durability, anti-erosion, aging resistance and dustproof,flame-retardant.

4. The panel is easy to be pulled and pushed.

5. FC / SC / LC type,SC duplex adapters are adopted.

6. Capacity for 12/24/48/72/96/144 core is available.

7. With changeable panel for duplex or simplex adapter,easily combination with your real application.

8. The Panel Color grey and black,please order when order

Description:

19 Inch Sliding Fiber Optic Patch Panel

The removable front panels chassis is a 19 inch 1U sliding panel in two parts: one sliding chassis and one front panel, which receives the optical adaptors. The flexibility of its two piece construction allows you to maintain a stock of the chassis and then attach a suitable front panel as required.

SPECIFICATIONS:

1. Environment temperature:-25℃~+45℃
2. Relative humidity:≤85%(30℃)
3. Atmosphere pressure:70~106KPa
4. Insulated Resistance:≥2×10MΩ/500V(DC)
5. Intensity≤15KV(DC)/1minno spark-over and no flying arc
6. Fiber bending radium guaranteed more than 40mm:≥40mm

7. Material: Cold rolled steel

8. High quality finish,without sharp edges.

9. With changeable panel for duplex or simplex adapter,easily combination with your real application.

Adoptable adapter types: FC, SC,LC/Duplex.

Applications:

FTTx, FTTH, FTTB, FTTO, Telecom network, CATV.Provide fusion and storage appliance for optical cables,for indoor fiber optic cable distribution.

Specifications :

Material	Cold rolled steel for the box, ABS for the tray
Operating Temperature	-40°C~+60°C
Relative Humidity	<95%(+40°C)
Insulated resistance	≥2x10MΩ/500V(DC)
Dimension	for 19" cabinet
Capacity	24core (12core,24core,48core,72core,96core,144core is available)
Installation Method (in overstriking )	Floor Standing / wall mounted / pole mounted / rack mounted / corridor mounted / mounted in cabinet
