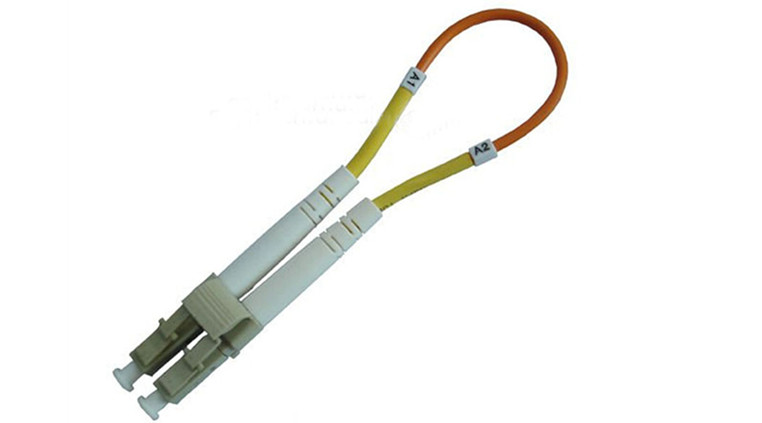

LC Fiber Optic Patch Cord , LC Loopback Patch Cord Singlemode & Multimode

Product Name: LC Fiber Optic Patch Cord , LC Loopback Patch Cord Singlemode & Multimode
Model NO.: YJ-059
Origin: China
Brand Name: YJ
Delivery Time: 10 Days
Minimum Order: 1 Bag
Supply Ability: 10000M/day
Quality System Certification: ISO,RHOS,UL,CE

Product Details: LC Fiber Optic Patch Cord , LC Loopback Patch Cord Singlemode & Multimode

We supply Multi mode Duplex LC to LC Fiber Patch Cord For CATV / FTTH / LAN with very competitive prices, every single piece of Multi mode Duplex LC to LC Fiber Patch Cord For CATV / FTTH / LAN is tested in the workshop before delivering to the customer.

Fiber cable of Multi mode Duplex LC to LC Fiber Patch Cord For CATV / FTTH / LAN are designed and manufactured in ISO9001 registered facility.

The product range covers both single mode and multimode pigtails and pigtails which are fully qualified to RoHS standards.

Assemblies are available in all major fiber optic connector types; a range of cable color options available.

Quick Detail:

Cable Color : Orange
Type : UPC
Core Quantity : Simplex
Cable Dia : 3.0mm
Model Number : LC/PC-LC/PC
Mode Type : Multimode
Dimension : customized
Available Type : FC SC ST LC MU MTRJ E2000 D4 ...

Description:

Various connector type available
Low back reflection loss
Compact size
Low insertion loss
High Return Loss
Diameter Φ 0.9mm, Φ 2.0mm, Φ 3.0mm Fiber Available
Single-mode Fiber or Multi-mode Fiber Available (For Simplex or Duplex)

Applications:

Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS (fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitted equipment
Defense combat readiness

Specifications :

Mode	SM	MM
Polish	UPC/APC	PC
Insertion Loss	Typical ≤0.2dB Maximum ≤0.3dB	≤0.25dB
Return Loss	≥50DB(PC) ≥60DB(APC)	≥30dB
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB typical change, 1000 matings
Tensile Strength	> 10kg
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)

Competitive advantages:

Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.

All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.

We wish to create better future of optical communication industry jointly with both new and existing customers.
