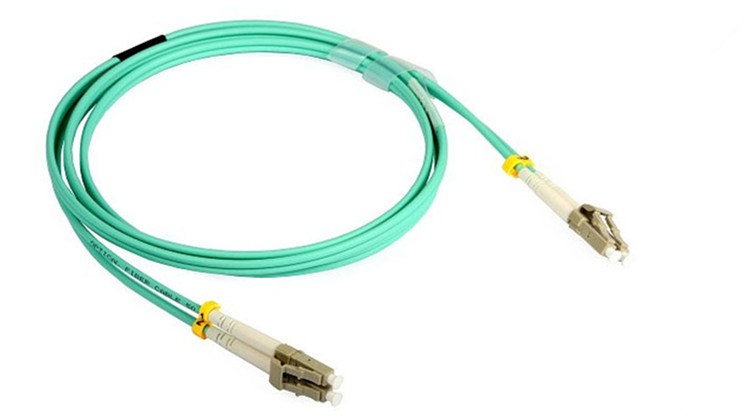

OS1 Multimode Fiber Optic Patch Cord OM2 And OM1 50 / 125 OM3

We supply OS1 Multimode Fiber Optic Patch Cord OM2 And OM1 50 / 125 OM3 with very competitive prices, every single piece of OS1 Multimode Fiber Optic Patch Cord OM2 And OM1 50 / 125 OM3 is tested in the workshop before delivering to the customer.



Fiber cable of OS1 Multimode Fiber Optic Patch Cord OM2 And OM1 50 / 125 OM3 are designed and manufactured in  ISO9001 registered facility.

The product range covers both single mode and multimode pigtails and pigtails which are fully qualified to RoHS standards.

Assemblies are available in all major fiber optic connector types; a range of cable color options available.


Quick Detail:


Model Number: fiber optic patch cord
Items: fiber optic patch cord
Connector type: SC FC LC ST etc.
Ferrule end face: UPC; APC
Cable type: SM,MM
OM type: 9/125UM; 50/125UM; 62.5/125UM
Cable Diameter: 0.9mm;2.0mm;3.0mm;
Cable length: 1m; 2m; 3m; 4m etc. as customized
Ferrule: Reinforced Zirconium dioxide
Certification: UL,CE,ROHS,ISO,SGS


Description:


Various connector type available
Low back reflection loss
Compact size
Low insertion loss
High Return Loss
Diameter Φ 0.9mm, Φ 2.0mm, Φ 3.0mm Fiber Available
Single-mode Fiber or Multi-mode Fiber Available (For Simplex or Duplex)


Applications:


Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS (fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitted equipment
Defense combat readiness


Specifications :





Model NO.	Fiber patch cord
Style	LC,SC,ST,FC,MU,MPO, PC/APC, Duplex MTRJ/Female, MTRJ/Male
Fiber Type	9/125 SMF-28 or equivalent (Singlemode) OS1 50/125, 62.5/125 (Multimode) OM2&OM1 50/125,
	10G (Multimode) OM3
Cable Type	Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber
	PVC or LSZH
Polishing Manner	UPC,SPC,APC (8°& 6°)
Insertion Loss	≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750
Return Loss (For Singlemode)	UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB)
	Tested by JDS RM3750
Repeatability	±0.1dB
Operating Temperature	-40C to 85C
Geometry Requirement (For Singlemode)	Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1
