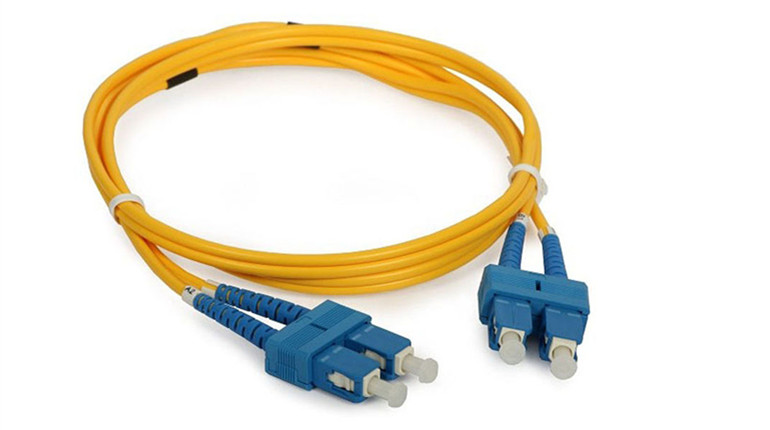

Fiber cable of SC - SC Optical Fiber Patch Cord & Pigtail Singlemode 9/125 for CATV are designed and manufactured in ISO9001 registered facility.
The product range covers both single mode and multimode pigtails and pigtails which are fully qualified to RoHS standards.
Assemblies are available in all major fiber optic connector types; a range of cable color options available.
Quick Detail:
Model Number: Optical Fiber Patch Cord
Products Name: Optical Fiber Patch Cord
Certificates: RoHS; ISO:9001,UL
Fiber Counts: Simplex, Duplex, 4~144 multi-fibers
Cable Outer Diameter: 0.9mm, 1.6mm, 2.0mm, 3.0mm
Fiber Types: G652D, G655,G657A,G657B,OM1,OM2,OM3
Optional Connectors:LC,SC,FC,ST,MU,MTRJ,MTP,MPO,E2000,ESCON,DIN,D4,SMA,
Mode: SingldeMode, MultiMode
Insertion Loss: UPC< 0.2dB, APC<0.3dB
Return Loss: UPC>55dB, APC>65dB
Description:
Various connector type available
Low back reflection loss
Compact size
Low insertion loss
High Return Loss
Diameter Φ 0.9mm, Φ 2.0mm, Φ 3.0mm Fiber Available
Single-mode Fiber or Multi-mode Fiber Available (For Simplex or Duplex)
Applications:
Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS (fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitted equipment
Defense combat readiness
Specifications :
| Type | Standard,Master |
| Style |
LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC Duplex MTRJ/Female, MTRJ/Male |
| Fiber Type |
9/125 SMF-28 or equivalent (Singlemade) OS1 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3 |
| Cable Type |
Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH |
| Polishing Manner | UPC,SPC,APC (8°& 6°) |
| Insertion Loss |
≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750 |
|
Return Loss (For Singlemode) |
UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
| Repeatability |
±0.1dB |
| Operating temperature | -400C to 850C |
|
Geometry Requirement (For Singlemode) |
Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
Competitive advantages:
