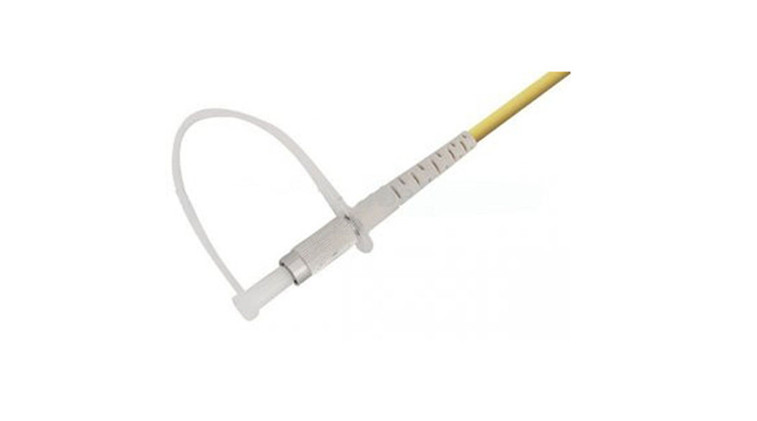

DIN Fiber Optic Patch Cord Screw-thread Coupling Mechanism SM or MM Available

Product Name: DIN Fiber Optic Patch Cord Screw-thread Coupling Mechanism SM or MM Available
Model NO.: YJ-028
Origin: China
Brand Name: YJ
Delivery Time: 10 Days
Minimum Order: 1 Bag
Supply Ability: 10000M/day
Quality System Certification: ISO,RHOS,UL,CE

Product Details: DIN Fiber Optic Patch Cord Screw-thread Coupling Mechanism SM or MM Available

We supply DIN Fiber Optic Patch Cord Screw-thread Coupling Mechanism SM or MM Available with very competitive prices, every single piece of DIN Fiber Optic Patch Cord Screw-thread Coupling Mechanism SM or MM Available is tested in the workshop before delivering to the customer.

Fiber cable of DIN Fiber Optic Patch Cord Screw-thread Coupling Mechanism SM or MM Available are designed and manufactured in ISO9001 registered facility.

The product range covers both single mode and multimode pigtails and pigtails which are fully qualified to RoHS standards.

Assemblies are available in all major fiber optic connector types; a range of cable color options available.

Quick Detail:

Brand Name: oem

Model Number: DIN

Connector Type: SC,LC,FC,ST, etc

Fiber Cable Type: Singlemode/ Multimode

Polishing Type: PC/ APC/ UPC

Fiber Cable Diameter: 3.0mm/ 2.0mm/ 0.9mm

Patch Cord Type: Simplex/ Duplex

Fiber Cable Jacket Material: PVC/ LSZH

Description:

The optical Fiber Connectors (Commonly we call Patch Cords) is a length of optical cable with

connectors fixed on two ends to realize the optical path active connection. Pigtail is a length fiber

cable with only one connector fixed on one end. If both sides of the connector or its end-face are

different, we call it hybrid patch cord. According to the transmission medium, it divides Single Mode

and Multi Mode; according to the connector structure type, it divides FC, SC, ST, MU, D4, E2000,

LC etc.; according to the polished ceramic end-face, it divides PC, UPC and APC.

Applications:

Communication rooms

FTTH (Fiber to The Home)

LAN (Local Area Network)

FOS (fiber optic sensor)

Fiber Optic Communication System

Optical fiber connected and transmitted equipment

Defense combat readiness

Specifications :

Type	Standard,Master
Style	LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
Fiber	Singlemode/Multimode 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, (Multimode) OM3
Cable	Simplex, Duplex Φ3.0mm, Φ2.0mm, Φ0.9mm PVC or LSZH
Polishing Manner	UPC,SPC,APC (8°& 6°)
Insertion Loss	≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750
Return Loss (Singlemode)	UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750
Repeatability	±0.1dB
Operating temperature	-400C to 850C
Geometry Requirement ( Singlemode)	Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1

Competitive advantages:

Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.

All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.

We wish to create better future of optical communication industry jointly with both new and existing customers.
