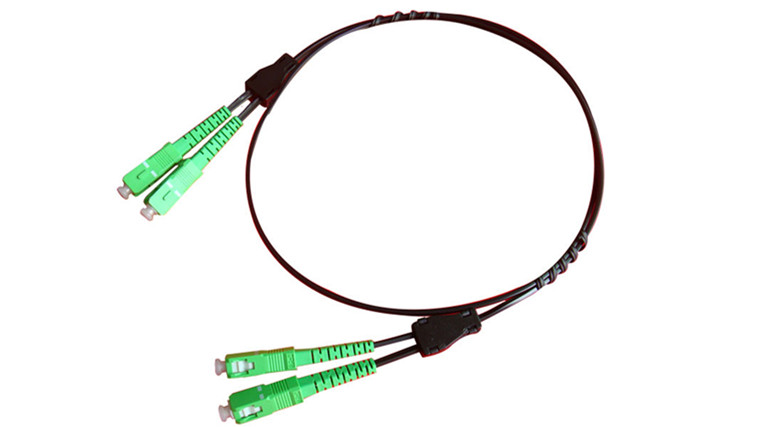

Fiber Optic Patch Cord FTTH FC SC ST LC DIN MU MTRJ Single Mode Or Multi Mode

Product Name: Fiber Optic Patch Cord FTTH FC SC ST LC DIN MU MTRJ Single Mode Or Multi Mode
Model NO.: YJ-027
Origin: China
Brand Name: YJ
Delivery Time: 10 Days
Minimum Order: 1 Bag
Supply Ability: 10000M/day
Quality System Certification: ISO,RHOS,UL,CE

Product Details: Fiber Optic Patch Cord FTTH FC SC ST LC DIN MU MTRJ Single Mode Or Multi Mode

We supply Fiber Optic Patch Cord FTTH FC SC ST LC DIN MU MTRJ Single Mode Or Multi Mode with very competitive prices, every single piece of Fiber Optic Patch Cord FTTH FC SC ST LC DIN MU MTRJ Single Mode Or Multi Mode is tested in the workshop before delivering to the customer.

Fiber cable of Fiber Optic Patch Cord FTTH FC SC ST LC DIN MU MTRJ Single Mode Or Multi Mode are designed and manufactured in ISO9001 registered facility.

The product range covers both single mode and multimode pigtails and pigtails which are fully qualified to RoHS standards.

Assemblies are available in all major fiber optic connector types; a range of cable color options available.

Quick Detail:

Cable Color : Black

Type : UPC

Core Quantity : duplex

Cable Dia : 3.0mm

Model Number : SC/APC-SC/PC

Mode Type : Multimode

Dimension : customized

Available Type : FC SC ST LC MU MTRJ E2000 D4 ...

Description:

Various connector type available

Low back reflection loss

Compact size

Low insertion loss

High Return Loss

Diameter Φ 0.9mm, Φ 2.0mm, Φ 3.0mm Fiber Available

Single-mode Fiber or Multi-mode Fiber Available (For Simplex or Duplex)

Applications:

Communication rooms

FTTH (Fiber to The Home)

LAN (Local Area Network)

FOS (fiber optic sensor)

Fiber Optic Communication System

Optical fiber connected and transmitted equipment

Defense combat readiness

Specifications :

ITEMS	Standard
Connector	LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
Connector	Duplex MTRJ/Female, MTRJ/Male
Fiber Type	9/125 SMF-28 or equivalent (Singlemade) OS1
	50/125, 62.5/125 (Multimode) OM2&OM1
	50/125, 10G (Multimode) OM3
Cable Type	Simplex, Duplex (Zipcord)
	Φ3.0mm, Φ2.0mm, Φ1.8mm
	Φ1.6mm PVC or LSZH
	Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH
Polishing Manner	UPC,SPC,APC (8°& 6°)
Insertion Loss	≤ 0.1dB (For Singlemode Master)
	≤ 0.25dB (For Singlemode Standard)
	≤ 0.25dB (For Multimode)
	Tested by JDS RM 3750
Return Loss (For Singlemode)	UPC ≥ 50dB
	SPC ≥ 55dB
	APC ≥ 60dB (typ.65dB)
	Tested by JDS RM3750
Repeatability	±0.1dB
Operating temperature	-400C to 850C
Geometry Requirement (For Singlemode)	Ferrule Endface Radius
	7mm ≤ R ≤ 12mm (For APC)
	10mm ≤ R ≤ 25mm (For Standard)
	Apex Offset ≤ 30 μm (For Master)
	Apex Offset ≤ 50 μm (For Standard)
	Undercut -50nm ≤ U ≤ 50nm
	Tested by DORC ZX-1

Competitive advantages:

Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.

All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.

We wish to create better future of optical communication industry jointly with both new and existing customers.
