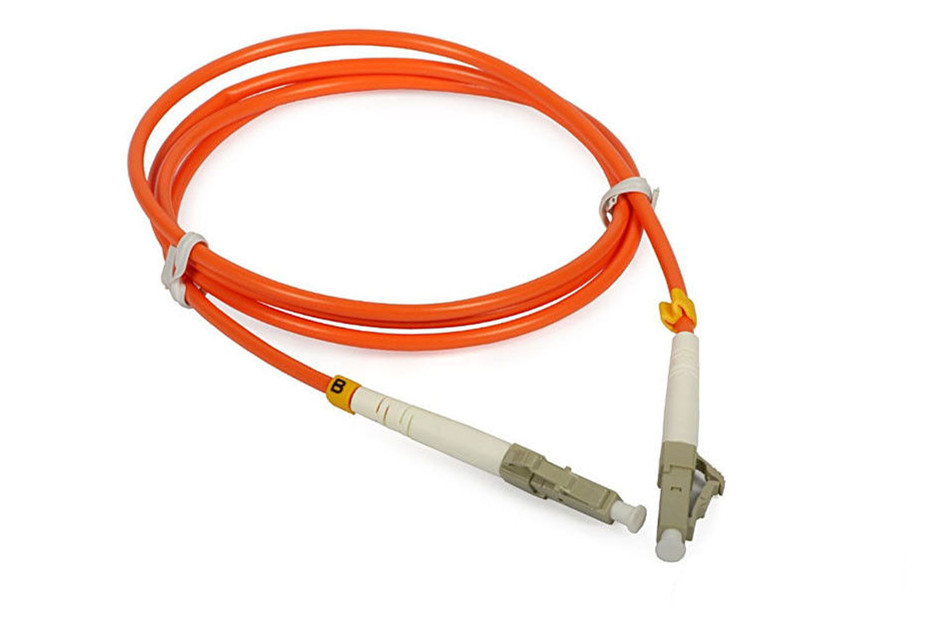

LC PC Multimode Fiber Optic Patch Cord With High Return Loss , APC Patch Cord

Fiber cable of LC PC Multimode Fiber Optic Patch Cord With High Return Loss , APC Patch Cord.LC/PC-LC/PC Multimode Fiber Optic Patch Cord With High Return Loss are designed and manufactured in  ISO9001 registered facility.

The product range covers both single mode and multimode pigtails and pigtails which are fully qualified to RoHS standards.

Assemblies are available in all major fiber optic connector types; a range of cable color options available.

Quick Detail:

Good interoperability;

Low insertion loss;

Fiber diameter:  Φ0.9, Φ2.0, Φ3.0;

Ceramic ferrules,PC,UPC and APC polishing;

PVC or LSZH jacket cable.

Connector Available:  FC,SC,ST.LC, MTRJ,MPO,MU ect...

Description:

Fiber optic patch cord is one jof the most commom components connecting from the equipment to the fiber optic lind .It is mormally used between the optical line teminal with the optical cable terminal box with thick protection layer.

Using high precision ceramic ferrule

Rubbing exactitude and testing completelly

Low insertion loss and high return loss

High stability and repeat

Be according with the telcordia GR-326-CORE standard

Ferrule:excellent quality and high intensity zirconium dioxide ceramic ferrule

Applications:

CATV,LAN,MAN,WAN,FTTH,FTTB;

Fiber-optical communications system;

Test & Measurement,Industry,Medical.

Lucent corning fiber optic cable

Order information:

SC/ PC – SC/ PC/ SM/ 2C/ 3.0 – 1M

1     2      1     2     3      4     5        6

1.Connector type:FC,SC,LC,ST,MTRJ,MU,E2000,MPO,DIN,D4,SMA;

2.Ferrule End-face:PC,APC;

3.Fiber Type:Single-mode(SM:9/125um),Multimode(MM:50/125um or 62.5/125um);

4.Cable Diameter:3.0mm,2.0mm,0.9mm;

5.Cable Diameter:3.0mm,2.0mm,0.9mm;

6.Length:1,2,3 meter or sustomized length;

7.Cable type:PVC,LSZH,OM3,OFNR,OFNP,Plenum

Specifications :

Competitive advantages:
