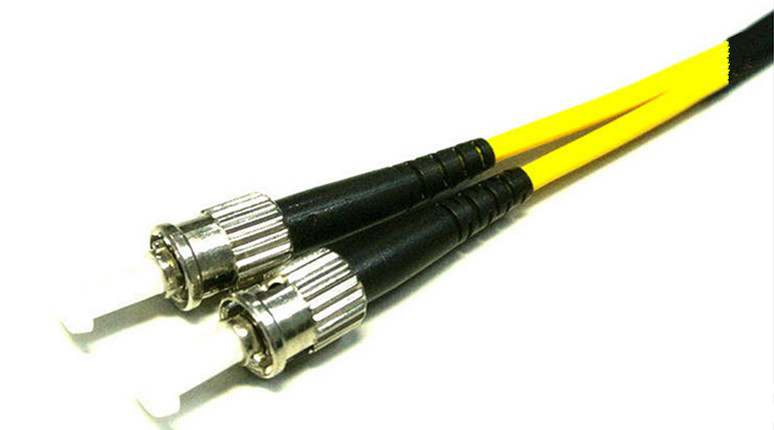

ST LSZH Fiber Optic Patch Cord Cable SM MM available for FTTH CATV Network

Product Name: ST LSZH Fiber Optic Patch Cord Cable SM MM available for FTTH CATV Network
Model NO.: YJ-003
Origin: China
Brand Name: YJ
Delivery Time: 10 Days
Minimum Order: 1 Bag
Supply Ability: 10000M/day
Quality System Certification: ISO,RHOS,UL,CE

Product Details: ST LSZH Fiber Optic Patch Cord Cable SM MM available for FTTH CATV Network

We supply ST LSZH Fiber Optic Patch Cord Cable SM MM available for FTTH CATV Network with very competitive prices, every single piece of ST LSZH Fiber Optic Patch Cord Cable SM MM available for FTTH CATV Network is tested in the workshop before delivering to the customer.

Fiber cable of ST LSZH Fiber Optic Patch Cord Cable SM MM available for FTTH CATV Network are designed and manufactured in ISO9001 registered facility.

The product range covers both single mode and multimode pigtails and pigtails which are fully qualified to RoHS standards.

Assemblies are available in all major fiber optic connector types; a range of cable color options available.

Quick Detail:

ST/UPC, ST/PC fiber optci patch cords DX, in single mode 9/125 and multimode 50/125, 62.5/125: OS1, OS2, OM1, OM2, OM3,OM4 fibers are available, cable outer diameter can be 0.9mm, 1.6mm, 2.0mm, 2.4mm and 3.0mm, in SX, DX or Multi-core patch cords.

Applications:

Telecommunication network

CATV system

Local Area Network

Active/Passive device

FTTH and FTTX

Specifications :

	SM		MM
	9/125		50/125	62.5/125	OM3 OM4
	UPC	APC	PC
Insertion loss	≤0.2dB		≤0.3dB
Return loss	≥50dB	≥60dB	≥35dB
Durability	1000 times, ≤0.2dB		1000 times, ≤0.3dB
Working Tem.	-40 to +80℃
Storage Tem.	-40 to +80℃
Endface Geometry
Parameter	2.5μmm Ferrule		1.25μmm Ferrule
Parameter	UPC	APC	UPC	APC
Radius of Curvature	10~25mm	5~12mm	7~25mm	5~12mm
Apex Offset	0~50μm	0~50μm	0~50μm	0~50μm
Fiber Height	-100~50nm	-100~100nm	-100~50nm	-100~100nm
Angle		7.7-8.3degree		7.7-8.3degree

Competitive advantages:

Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.

All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.

We wish to create better future of optical communication industry jointly with both new and existing customers.
