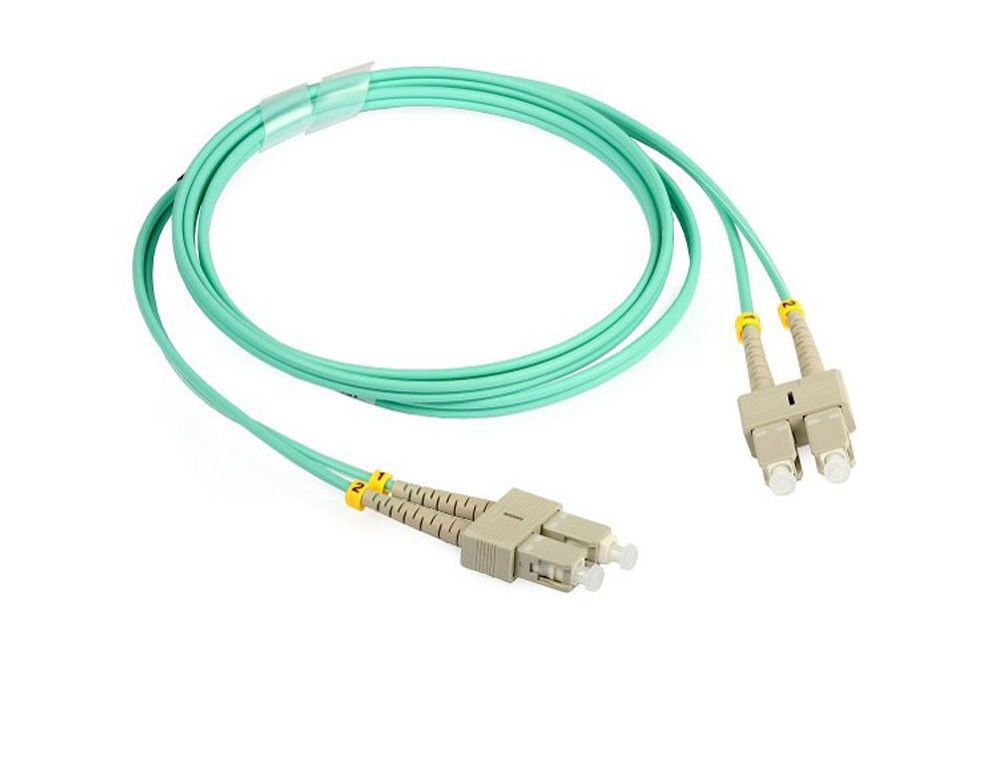

Multimode Duplex sc to sc Fiber Patch Cord for FOS / LAN / FTTH

Product Name: Multimode Duplex sc to sc Fiber Patch Cord for FOS / LAN / FTTH
Model NO.: YJ-001
Origin: China
Brand Name: YJ
Delivery Time: 10 Days
Minimum Order: 1 Bag
Supply Ability: 10000M/day
Quality System Certification: ISO,RHOS,UL,CE

Product Details: Multimode Duplex sc to sc Fiber Patch Cord for FOS / LAN / FTTH

We supply Multi mode Duplex sc to sc Fiber Patch Cord for FOS / LAN / FTTH.SC/SC Multimode Duplex fiber optic patch cord 50/125 with very competitive prices, every single piece of Multi mode Duplex sc to sc Fiber Patch Cord for FOS / LAN / FTTH.SC/SC Multimode Duplex fiber optic patch cord 50/125 is tested in the workshop before delivering to the customer.

Fiber cable of Multi mode Duplex sc to sc Fiber Patch Cord for FOS / LAN / FTTH.SC/SC Multimode Duplex fiber optic patch cord 50/125 are designed and manufactured in ISO9001 registered facility.

The product range covers both single mode and multimode pigtails and pigtails which are fully qualified to RoHS standards.

Assemblies are available in all major fiber optic connector types; a range of cable color options available.

Quick Detail:

Cable Color : Orange

Type : UPC

Core Quantity : duplex

Cable Dia : 3.0mm

Model Number : SC/PC-SC/PC

Mode Type : Multimode

Dimension : customized

Available Type : FC SC ST LC MU MTRJ E2000 D4 ...

Description:

Various connector type available

Low back reflection loss

Compact size

Low insertion loss

High Return Loss

Diameter Φ 0.9mm, Φ 2.0mm, Φ 3.0mm Fiber Available

Single-mode Fiber or Multi-mode Fiber Available (For Simplex or Duplex)

Applications:

Communication rooms

FTTH (Fiber to The Home)

LAN (Local Area Network)

FOS (fiber optic sensor)

Fiber Optic Communication System

Optical fiber connected and transmitted equipment

Defense combat readiness

Specifications :

Item	Mode Type	PC	SPC	UPC	APC
Insertion Loss	SM	≤0.25dB	≤0.20dB	≤0.20dB	≤0.20dB
Insertion Loss	MM	≤0.30dB	≤0.20dB	≤0.20dB	≤0.30dB
Return Loss	SM	≥45dB	≥50dB	≥55dB	≥65dB
Return Loss	MM	≥35dB	≥35dB	≥35dB	≥35dB
Repetition Test		Additional Loss≤0.1dB,Reture Loss Variability<5dB
Temperature Stability(-40°C~85°C)		Additional Loss≤0.2dB,Reture Loss Variability<5dB
Operating Temperature		-40°C~+75°C
Storage Temperature		-40°C~+85°C
-Option:CableDiameters;0.9,2mm,3mm&others
-Type:simplex,duplex,Matrial Type:pvc,hytrel,LSZH,OFNP,OFNR

Competitive advantages:

Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.

All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.

We wish to create better future of optical communication industry jointly with both new and existing customers.
