Fiber Optic Adapter

Home > FTTH Products > Fiber Optic Adapter > Telecom Network Fiber Optic Adapter Multimode OM3 auqa color duplex Adapter FTTH

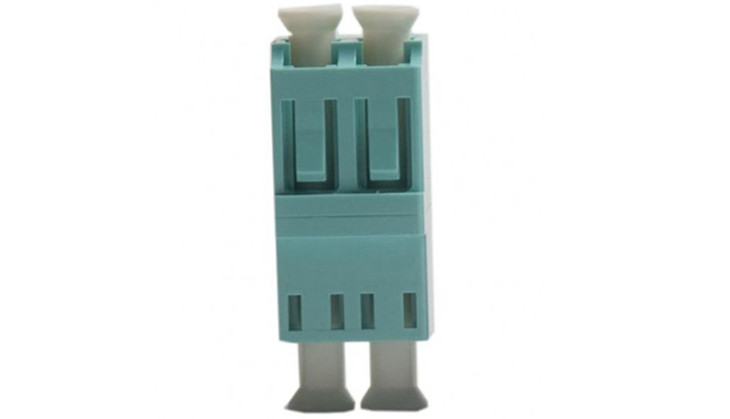

Telecom Network Fiber Optic Adapter Multimode OM3 auqa color duplex Adapter FTTH

Product Name: Telecom Network Fiber Optic Adapter Multimode OM3 auqa color duplex Adapter FTTH
Model NO.: YJ-A015
Origin: China
Brand Name: YJ
Delivery Time: 10 Days
Minimum Order: 1 Bag
Supply Ability: 10000M/day
Quality System Certification: ISO,RHOS,UL,CE

Product Details: Telecom Network Fiber Optic Adapter Multimode OM3 auqa color duplex Adapter FTTH

Our Zirconia / PB Fiber Optic Attenuator for Multimedia Data processing networks

In a very good prices, every single piece of Zirconia / PB Fiber Optic Attenuator is tested in the workshop before delivering to the client.

The Attenuator are fully qualified to RoHS standards and ISO9001:2008.

SC, FC, ST, LC type fiber optic adapter, coupler
Apply for CATV, LAN, Telecom network, test equipment
Multi Mode or Single Mode, Simplex or Duplex optional
PC / APC available
Square, round, single / coupled, quad 2 cores or 4 cores shape optional
Ceramic sleeve, copper, zinc alloy and plastic housing
IL≤0.2dB, RL≥50dB (pc); RL≥60dB (apc)
Operating temp.: -40°C~+85°C
Standard plugging force: 2~6N
Durability > 1000 times

Description:

SC connectors are currently the most popular optical coupling elements due to simple matching (push-pull coupling with a snap), rectangular cross-section allowing dense packing of the connectors on the panel, and plastic construction (of course outside the ferrule).

Applications:

Fiber to The Point (FTTX)
Fiber to The Home (FTTH)
Passive optical network (PON)
Local Area Network (LAN)
Cable Television (CATV)Test Equipment

Specifications :

SPECIFICATIONS
Insertion Loss		<0.20 dB
Plug and unplug force		200-600(g/f)
Durability		plug and unplug 1000times
Operating Temperature		-40+75

ORDERING OPTIONS
Housing Material	Sleeve Material		Channel	Application
Nickel plated brass	Zirconia		Simplex	SC/PC
	copper		duplex	SC/APC

Telecom Network Fiber Optic Adapter Multimode OM3 auqa color duplex Adapter FTTH

Competitive advantages:

Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.

All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.

We wish to create better future of optical communication industry jointly with both new and existing customers.
