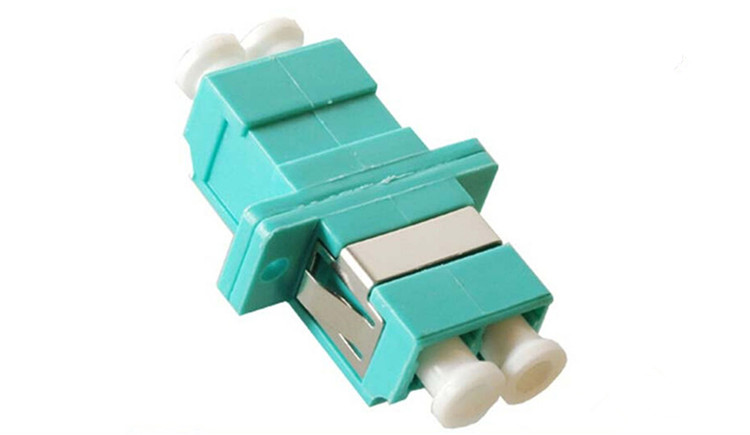

LC Fiber Optic Adapter , LC Duplex Multimode 10Gb OM3 Optical Fiber Adapter

Product Name: LC Fiber Optic Adapter , LC Duplex Multimode 10Gb OM3 Optical Fiber Adapter
Model NO.: YJ-A021
Origin: China
Brand Name: YJ
Delivery Time: 10 Days
Minimum Order: 1 Bag
Supply Ability: 10000M/day
Quality System Certification: ISO,RHOS,UL,CE

Product Details: LC Fiber Optic Adapter , LC Duplex Multimode 10Gb OM3 Optical Fiber Adapter

Our Zirconia / PB Fiber Optic Attenuator for Multimedia Data processing networks

In a very good prices, every single piece of Zirconia / PB Fiber Optic Attenuator is tested in the workshop before delivering to the client.

The Attenuator are fully qualified to RoHS standards and ISO9001:2008.

LC OM3 10G optic fiber adapter

LC 10G aqua adaptor

SM & MM

Zirconia or bronze sleeve

Simplex,Duplex,quad options

Made In China

Description:

SINDA supply LC fiber optic adapters, including simplex, duplex and quad types.These LC adapters are single mode and multimode styles with plastic housing and zirconia sleeve,or PB sleeves.There are stand LC fiber adapter and SC footprint LC fiber optic adapters available..For SC-configured environments,we offer LC Duplex and Quad Adapters with SC Footprint.

Applications:

• Gigabit Ethernet

• Video

• CATV

• Active device/Transceiver interface

• Telecommunication networks

• Metro networks

• Premise installations

• Multimedia

• Industrial and military

Specifications :

Item	Insertion Loss	Mechanical resistance	Repeatability	Operating Temperature
SM/PC	≤0.2dB	100-300g	＜0.2dB(1000times)	-40℃ ~ +80℃
SM/APC	≤0.2dB	100-300g	＜0.2dB(1000 times)	-40℃ ~ +80℃
MM/PC	≤0.3dB	100-300g	＜0.3dB(1000times)	-40℃ ~ +80℃

Ordering Information:

Item	Mounting	Sleeve Material	Adapter Material	Colour
SM/PC Simplex	2 Flange	Ceramic Zirconia	Plastic	Blue
SM/PC Duplex	2 Flange	Ceramic Zirconia	Plastic	Blue
SM/APC Simplex	2 Flange	Ceramic Zirconia	Plastic	Green
SM/APC Duplex	2 Flange	Ceramic Zirconia	Plastic	Green
MM/PC Simplex	2 Flange	Ceramic/phosphor bronze	Plastic	Beige
MM/PC Duplex	2 Flange	Ceramic/phosphor bronze	Plastic	Beige
