Fiber Optic Adapter

Home > FTTH Products > Fiber Optic Adapter > LC OM4 Fiber Optic OM4 Adapter , Fiber Optic OM4 Lc Adapter IL 0.2dB Multimode

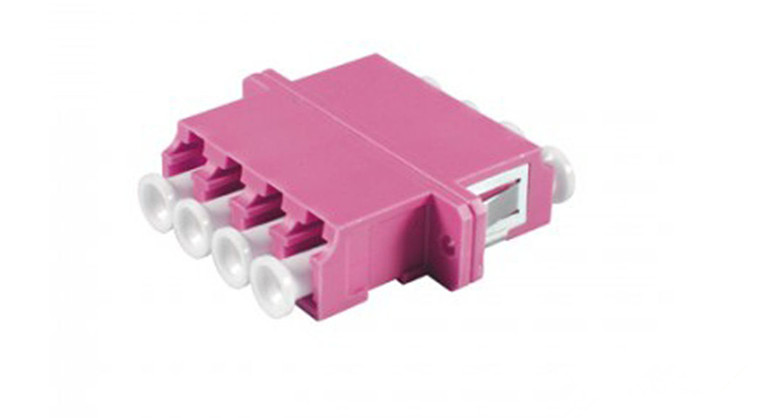

LC OM4 Fiber Optic OM4 Adapter , Fiber Optic OM4 Lc Adapter IL 0.2dB Multimode

Product Name: LC OM4 Fiber Optic OM4 Adapter , Fiber Optic OM4 Lc Adapter IL 0.2dB Multimode
Model NO.: YJ-A014
Origin: China
Brand Name: YJ
Delivery Time: 10 Days
Minimum Order: 1 Bag
Supply Ability: 10000M/day
Quality System Certification: ISO,RHOS,UL,CE

Product Details: LC OM4 Fiber Optic OM4 Adapter , Fiber Optic OM4 Lc Adapter IL 0.2dB Multimode

Our Zirconia / PB Fiber Optic Attenuator for Multimedia Data processing networks

In a very good prices, every single piece of Zirconia / PB Fiber Optic Attenuator is tested in the workshop before delivering to the client.

The Attenuator are fully qualified to RoHS standards and ISO9001:2008.

Model Number : MTRJ Connector

Polishing : PC / APC

Model : SM Or MM

Sleeve Type : Ceramic

Insert loss: ≤0.2dB

Interchange:≤0.1

Description:

This patch cord fiber is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment.

Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box.

This is known as "interconnect-style cabling".

Applications:

Telecommunication Networks

CATV Networks

Data communication Networks

Instrumentation

LAN

Specifications :

Parameter	Unit	LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU				MTRJ			E2000
		SM			MM	SM		MM	SM
		PC	UPC	APC	PC	PC	UPC	PC	PC	APC
Insertion Loss (Typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.3
Return Loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥35	≥55	≥75
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Repeatability	dB	≤0.2				≤0.2			≤0.2
Durability	Time	>1000				>1000			>1000
Operating Temperature	°C	-40~75				-40~75			-40~75
Storage Temperature	°C	-45~85				-45~85			-45~85

Fiber Optic Adapter Singlemode 1M SX LSZH Corning Fiber Optic Cable For CATV

Competitive advantages:

Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.

All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.

We wish to create better future of optical communication industry jointly with both new and existing customers.
