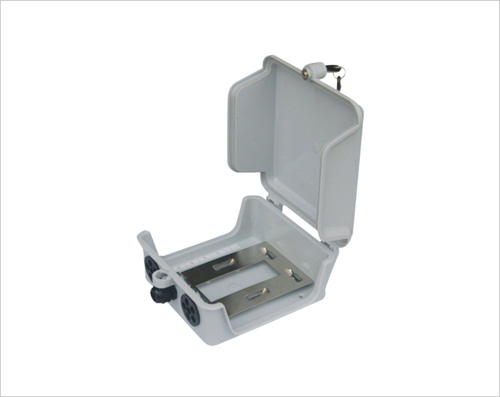

Outdoor DP Box Plastic for STB Modules 10 pair

Product Name: Outdoor DP Box Plastic for STB Modules 10 pair
Model NO.: YJ-2011
Origin: China
Packing: 100pieces/box
Brand Name: YJ
Delivery Time: 10
Minimum Order: 200
Quality System Certification: RoHS

Product Details: Outdoor DP Box Plastic for STB Modules 10 pair

Outdoor STB Subscribe Terminal BOX 10Pair Network Distribution Box for STB module

Quick Detail:

1. Outdoor DP Box Plastic for STB Modules 10pairs

2. Material:PC,with steel rails.

3. Cable grommets for wire entry and exit is for waterproof.

4. For subscribe connector unit unprotection and protection over voltage and over currence.

5. With lock

6. Application:Ourdoor or indoor

7.The module offers connection point between an exchange-side cable pair and a distribution pair

Description:

Mainly used in terminating cables of secondary telephone networks to the cable pairs of subscriber lines.
The connection module provides a connection point between an exchange-side cable pair and a distribution pair. It incorporates a 5-point plug-in module to provide continuity and a range of other options. Removal of the plug-in module does not disturb wire connections but makes contacts to them available for testing to both sides of the network.

It is especially recommended for:
Outdoor connections where the environmental conditions are extremely aggressive.
Terminations where user development characteristics require future flexibility in terms of the type of protection or filtering capabilities.Empty distribution box for 1pair dropwire module(STB module),offerring good connection environment for telecommunication.

The box consists of a body and cover which house modules on a DIN rail.Provision for wall mounting is incorporated in the body of the box. The lid has various opening positions, which can be selected according to the amount of working space available, and is also fitted with a seal to limit water entry.
Grommets are provided for dropwire and pair access.

The box locking mechanism is mounted in the base and is effective on closing the box; to open the box again a special key or a screwdriver is required depending upon the lock type.Without indication,the normal pack for the box is with key.

The connection modules are designed for mounting on a standard DIN rail and can therefore be mounted in a variety of housings in whatever quantities are required.

The subscriber connector unit consists of a rectangular box base with a cover and a connection module secured to the base.The top and base are hinged together, and the top is easily removable to facilitate working in cramped conditions.The cable grommets for wire entry and exit may be adjusted to conductor size and are also removable.A metal screw is provided for grounding purposes.

Application for replacing Tyco VX-SB subscribe connector unit terminal blocks,Connecting 1 pair module without protection,module with surge protection (gas-discharge instrument with surge protection to 230V) and module with overvoltage and overcurrent (overvoltage to 230V, and by two resistors PTC, which protect from the overcurrent).

Applications:

For mounting to walls,wood,metal or concrete poled

Specifications :

Outdoor waterproof Distribution Box :The type of STB module is required as your application. -G is for YH-5027 unprotected, -R is for YH-5028 with GDT protection, -O is for YH-5029 with GDT and PTC protection. standard with expansion bolt for wall mounted.The accessories for pole mounted is on requirement.
Item No	Description
YJ-2010-1	1pair DP box for STB module (EMPTY) 954550mm
YJ-2010-1G	1pair DP box with STB module(YH-5027) 954550mm
YJ-2010-1R	1pair DP box with STB module(YH-5028) 954550mm
YJ-2010-1O	1pair DP box with STB module(YH-5029) 954550mm
YJ-2010-2	2pair DP box for STB module (EMPTY) 1459575mm
YJ-2011	10pair DP box for STB module (EMPTY) 19519585mm
YJ-2012	20pair DP box for STB module (EMPTY) 35019095mm
