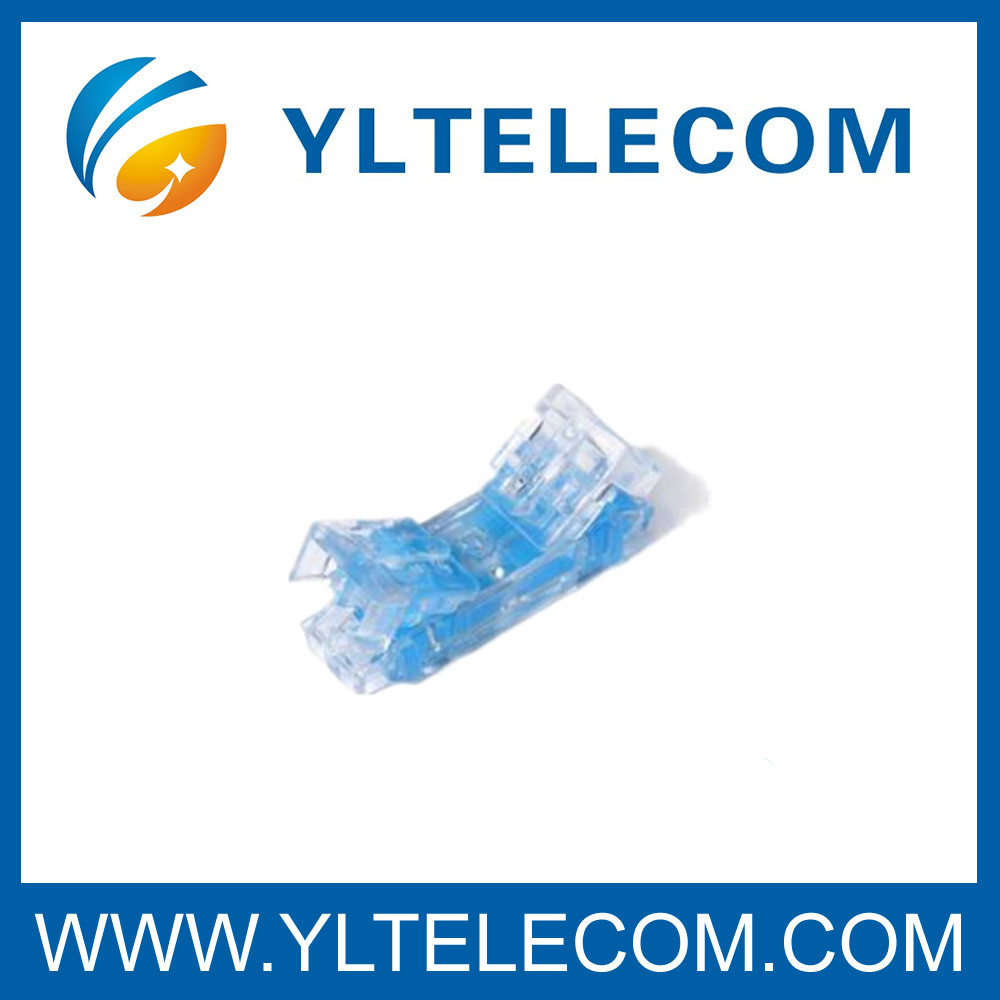

Jelly Wire Connector Butt IDC Wire Splice Connector With sealed moisture-resistant 3M 101E
Quick Detail:
1. 101E connector made of polycarbonate
2. wire range of 0.7-0.4 mm (21-26AWG)
3. insulation outside diameter up to 1.4mm (0.055”)
4. Color:Blue
5. With gel
6. Packing: 50pcs/bag, 500pcs/box, 5000pcs/cs.
7. 6.9kg/ctn
Description:
101E
A sealed moisture-resistant four wire(1 full pair) connector for solid copper 0.7-0.4 mm (21-26AWG) cable. 1.4mm (0.055”) Maximum Insulation O.D.
101I
A dry four wire(1 full pair) connector for solid copper 0.7-0.4 mm (21-26AWG) cable.1.4mm (0.055”) Maximum Insulation O.D.
Tap connectors are fast to install, easy to work with and available in a wide range of common wire gauges.Tap connectors allow direct tapping into existing solid copper conductors without interrupting service. The pre-crimp feature helps hold the wires in place until the connector is crimped and the splice is complete.
Various insulation displacement connectors to cat.5 compliance,dry or gell-filled on sales:
Inline and drop wire connectors can only be used with hand crimping tool YJ-8028(3M item no.E-9BM) ,YJ-8021 crimping tool (3M item no.E-9Y) for your option.
AMP picabond connector (green and blue) is on sales, with package in roll which is more convenient for operation.With crimpting tool YJ-244271-1
Applications:
3M type wire connectors, UY connector, UY2 connector, UR connector, UB connector, UG connector and UDW2 connector are all available on sales. This wire connectors are used to connect two wires safely and fast with gel filling inside, which is moisture proof.
Specifications:
|
UR connector |
Gel filled for moisture resistance and for PIC cable applications, filled or unfilled. It accepts two or three wires within wire range of 0.4-0.9 mm (26-19 AWG) and insulation outside diameter up to 1.52 mm/.060". It is made of polycarbonate and is Cat. 5 compliant. |
|
UY connector |
Gel filled for moisture resistance and is suitable for PIC cable applications, filled or unfilled. It accepts two wires within wire range of 0.4-0.7 mm (26-22 AWG) and insulation outside diameter up to 1.52 mm/.06". It is made of polycarbonate and is Cat. 5 compliant. |
|
UY2 connector |
gel filled for moisture resistance and is suitable for PIC cable applications, filled or unfilled.It accepts two wires within wire range of 0.4-0.9 mm (26-19 AWG) and insulation outside diameter up to 2.08 mm/.082". It is made of polypropylene and is Cat. 5 compliant. |
|
UDW2 Connector |
is a four wire (one full pair) aerial inline drop-wire connector for copper or copper coated steel conductors. It is used for mid-span splices where strain relief is provided. Gel filled for moisture resistance and for PIC cable applications, it accepts conductors within wire range of 0.9-1.3 mm (19-16 AWG) and insulation outside diameter up to 4.4 mm/.175". It is made of polycarbonate. |
|
UG connector |
llows direct tapping into existing plastic insulated solid copper conductors without interrupting service. It is gel filled for moisture resistance and for PIC cable applications, filled or filled. It accepts conductors within wire range of 0.4-0.9 mm (26-19 AWG) tap and 0.4-0.7 mm (26-22 AWG) run wire with insulation outside diameter up to 1.54 mm/.061" tap and 1.12 mm/.044" run wire. It is made of polycarbonate. |
|
U1B |
A sealed moisture-resistant four wire(1 full pair) inline drop-wire |
|
U1B-2 |
A sealed moisture-resistant four wire(1 full pair) inline drop-wire |
|
U1R |
A sealed moisture-resistant four wire(1 full pair) inline drop-wire |
