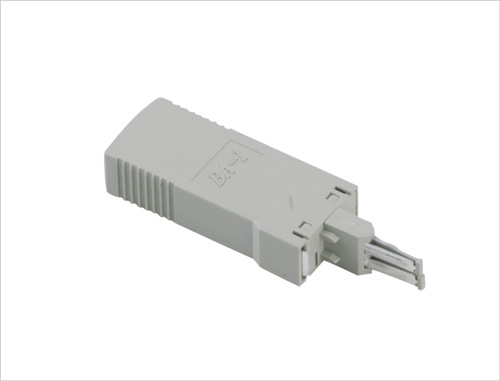

LSA Type Single Pair Lighting Protector For Krone Module

Single Pair Lightning Protector plug For Krone Connection Module Over voltage With LED light

Quick Detail:

1, Material: ABS

2, Contact: Phosphor Bronze

3, Silver Plating: 0.5 um1.25 um5 um

4, Can be installed on krone type terminal block

5, Magazine With 2pole arrester or 3 pole arrester,can be with duct cover.

6.Protection products includes: 8Pair protection magazine,10Pair protection magazine,krone single pair protector,5pin lightning protector,various type on option.

7, 100% test passed,arrester voltage usually for 230V,it can be on your requirement.

Description:

Specifications:

 Direct current break over voltage: 200-260V
 Resistance to alternating current: 5A / 10A

 Pulse break over voltage: <=800V
 Resistance to pulse current: 5KA / 10KA
 Zero power resistor: <=22 Ohm
 Insulation resistor: >1x108M Ohm
 Absolute error: <=2 Ohm
 Re-flow operation characteristics: 110mA (60V DC))
 Lasting time: 60s
 Over-current operation characteristics:
a) Initial current: 0.35A - 3A
b) Decreased to 0.15A: <=20 / 15 / 5 / 1.5 / 0.5 / 0.2s

Main technical:

Material: reed using tin bronze, and the outer layer of silver-plated,Approve National Standards: YD/T694-2004 Main Distribution Frame
Insulation Features: ≥ 2000Mohm
Contact resistance: ≤7mohm
Resistance to voltage: ≥1000V/1min without breakdown or arcover-current.

ORDERING INFORMATION

Item no. Description

YJ-49091063-40 With 3pole arrester for krone module,over voltage 230V
YJ-5010 With 3pole arrester for krone module,over voltage 230V
YJ-5011 With 3pole arrester for krone module,over voltage 230V,with LED light

YJ-50892024-61 10pair magazine with 2pole arrester,unequipped on option
YJ-50892023-08 10pair magazine with 3pole arrester,unequipped on option

Applications:

High speed LAN and WAN systems,used to protect the telecom equipment from damage of lightning,over voltage and over currence.
