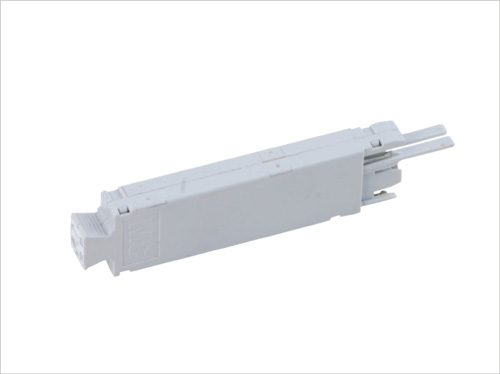

3M Single Line Splitter and Bridging Module

Product Name: 3M Single Line Splitter and Bridging Module
Model NO.: YJ-142840CF
Origin: China
Packing: 1000pieces/box
Brand Name: YJ
Delivery Time: 10
Minimum Order: 1000
Quality System Certification: RoHS

Product Details: 3M Single Line Splitter and Bridging Module

High Density Single-port splitter and bridging module for BRCP-SP Integrated Splitter Block 242840CF

Quick Detail:

1, Material: PBT or ABS(UL94V-0)

2, Contact: Phosphor Bronze

3, Silver Plating: 0.5 um1.25 um5 um

4, Can be installed on krone type terminal block

5, With 2pole arrester or 3 pole arrester,can be with duct cover.

6. 8Pair protection magazine,10Pair protection magazine,krone single pair protector,5pin lightning protector,single line protectors, the BRCP-SP splitter block ,various type on option.

7, 100% test passed,arrester voltage usually for 230V,it can be on your requirement.

Description:

Single Line Splitter and Bridging Module

Using field-manageable single line splitter modules, the splitter block provides individual customer-centric service line management at the central office MDF or the remote cross-connect field, supporting multiple services (POTS, ADSL, ADSL2+, VDSL, naked DSL, g.SHDSL, VoIP, CLEC transmission, etc.)

Single-port splitters allow for individual splitter replacement, in the case of a splitter fault, without disrupting POTS service and without removing multiple splitters, as in the case of a DSLAM full splitter board replacement. Bridging modules support all applications that do not require a POTS input, such as naked DSL, full unbundling, g.SHDSL or VoIP.

Feature:
A.Modules are located at the rear of the block
B.Lifeline service
C.Splitter and bridging modules are keyed

Integrated Splitter Block Mechnical specifications:
48-port splitter block- Hight:135mm
width: 133mm Depth: 143mm

Wire range IDC contacts- 0.4mm-0.8mm (26AWG to 20AWG)

High Density Single-port Connection Module for BRCP-SP Integrated Splitter Block 242840CF

Materials:
Plastics: Thermoplastic
Contacts: Bronze, tin (Sn) plating
Electrical specification:
Insulation resistance: > 1000M Om
Contact resistance: < 10mOm
Dielectric strength: 3000V rms, 60Hz AC
High voltage surge: 3000V DC surge
Transmission specification:
Insertion loss: <0.01dB to 2.2MHz <0.02dB to 12MHz <0.04dB to 30MHz
Return loss: >57dB to 2.2MHz >52dB to 12MHz >43dB to 30MHz
Crosstalk: >66dB to 2.2MHz >51dB to 12MHz >44dB to 30MHz
Environment specification:
Operating temperature: -10°C to 60°C
Storage temperature: -40°C to 90°C

Flammability rating: UL94 V-0 material used

Applications:

High speed LAN and WAN systems,used to protect the telecom equipment from damage of lightning,over voltage and over currence.

Specifications :

Mechanical Performance	Plastic material: Thermoplastic
	Contact material: Bronze, tin (Sn) plating
	Surface Plating Silver(0.5um-5um)
	Earth bar: Phosphor Bronze.Surface Plating nickel
Environment Characteristic	Storage Tempreture: 40 to 70°C
	Operating Temperature : 10 to 60°C
	Relative Humidity: 95%, noncondition
Electrical Performance	Insulation resistance: 1000 Mohms minimum
	Contact resistance :10 mohms maximum
	Dielectric intensity: 3000V rms, 60Hz AC
