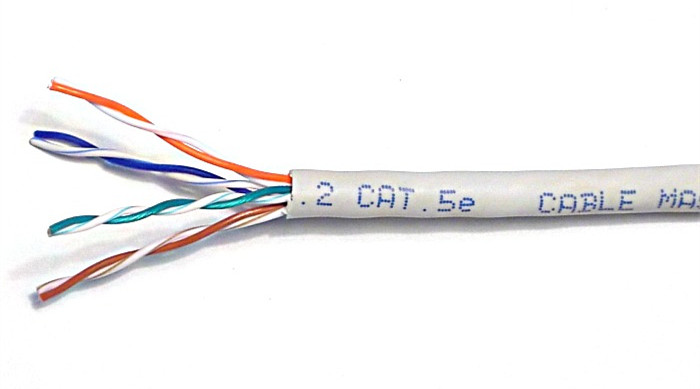

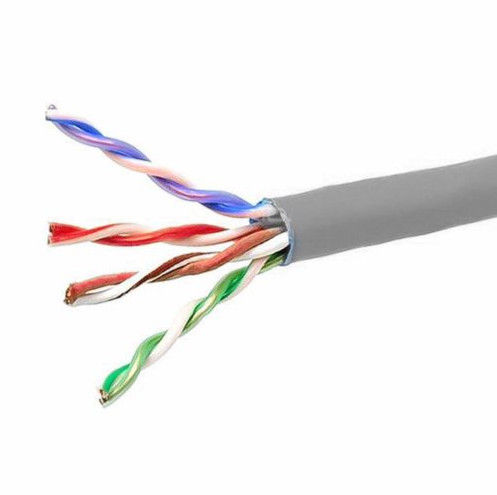

CAT5e High Performance Lan Network Cable UTP , F-UTP , FTP 0.49mm - 0.585mm Conductor
Quick Detail:
1. EIA/TIA 568B.2-10& ISO/IEC 11801, IEC 61156
2. Solid bare copper conductor
3. Colour-coded PE insulation,Rip cord (optional)
4. Cat.5e performance
5. PVC or LSZH jacket
6. Packaging: Reel,Reel in Box
Description:
Category 5E U/UTP 100Mhz unshield solution provide higher performance and more stable transmission rate than Category 5.
Cat5e U/UTP Cable has guaranteed perfoemance to 100 Mhz and meets TIA568 C.2 specification.
Combined with Unshield Cat5e keystone Jack Patch cords, and patch panel, it provides excellent and stable performance.
Specification
|
No. of Cord |
4 Pairs |
|
|
Conductor |
Material |
Bare Copper |
|
Construction |
1/0.50 ± 0.008 mm |
|
|
Insulation |
Material |
HDPE |
|
Filler |
/ |
|
|
Shield |
Material |
/ |
|
Braiding |
/ |
|
|
Drain Wire |
Material |
/ |
|
Rip Cord |
Nylon |
|
|
Jacket |
Material |
PVC |
|
O.D. |
5.0 ± 0.1 mm |
|
|
Color |
Customized |
|
|
Marking |
Customized |
|
|
Insulation Resistance |
Min. 5000 mega ohms-km at 20℃ |
|
|
Dielectric Test |
1000V DC /1 min ; No Breakdown |
|
|
Bend Radius |
4 x cable diameter |
|
|
Operating Temperature |
-20℃ ~ 80℃ |
|
|
Part number |
Description |
AWG |
Standard color |
Packing Type |
Carton |
Material |
|
YJ-LC001 |
Cat 5E UTP/FTP/SFTP solid cable |
24AWG |
RAL7004 |
Box |
305m(1000ft) |
PVC/LSZH |
|
YJ-LC002 |
Cat 6 UTP/FTP/SFTP solid cable |
24AWG |
RAL7004 |
Box |
305m(1000ft) |
PVC/LSZH |
|
YJ-LC003 |
Cat 6A UTP/FTP/SFTP solid cable |
23AWG |
RAL7035 |
Box |
305m(1000ft) |
PVC/LSZH |
|
YJ-LC007 |
Cat 7 FTP/SFTP solid cable |
23AWG |
RAL7035 |
Box |
305m(1000ft) |
PVC/LSZH |
