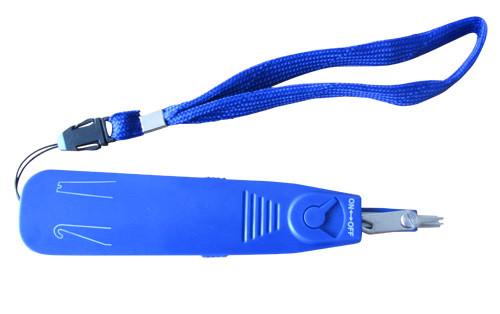

Huawei JPX-DXD1 IDC Tool For Termination Wires in Cable Networks

Huawei JPX-DXD1 IDC Tool For Termination Wires in Cable Networks

Quick Detail:

1. Made of ABS,flame retardant

2. Huawei IDC (Insulation Displacement Connection) tool with wire-cutter

3. Used to insert wires into connect-slot of terminal blocks or remove wires from terminal blocks

4. Redundant ends of wires can be cut automatically after wires are terminated

5. Hooks for removing wires are equipped.

6. Specially for Huawei MDF terminal module block

Description:

Operation Instruction

1.Place a wire by hand in the relevant slot of terminal .

2.Hold the IDC tool at a vertical angle.The movable knife must face to the end of the conductor to be cut,make the conductor be pressed by the slot of terminal tightly,maintain a close contact between the guilding piece and the plastic side of terminal ,keep the fixing knife press the end of the contctor to be cut.

3.Insert the conductor further,straighten IDC tool and press conductor into the slot.This automatically terminates the conductor and cuts it off depending on the position of the stop knob.

4.The conductor can be removed by hook,push the slider backwards which is near the Hook marker,the hook will be pushed out till its auto-locked.

5.The conductor can be pressed by crotch,push the slider backwards which is near the crotch marker,the hook will be pushed out till its auto-locked.

6.Terminate without cutting off,the stop knob should be in OFF postion,Terminate and cut off,the stop knob should be in ON position.

7.The conductors are terminated successfully,fixing bracket should return it original position,and send out Aa.Aa.

IDC (Insulation Displacement Connection) tool with wire-cutter;Used to insert wires into connect-slot of terminal blocks or remove wires from terminal blocks;Redundant ends of wires can be cut automatically after wires are terminated;Hooks for removing wires are equipped.

The networking tools we can offer including sort of insertion tools, impact and punch down tool (Ericsson punch down tool, Siemens punch down tool, Corning punch down tool and so on), crimping tool(RJ45 crimping tools, coaxial cable crimping tool, picabond ratchet crimper), cable stripper and cutter, cable tester and connector removal tool, and so on.

In short, we offer the networking tools for cutting and stripping coaxial cable, twist cable, and optical fiber. And professional compression crimping tool for different connectors, insertion tools for different modules .To save cost for customers, we have desired some tools with multi-function. So you can keep one tool instead of several different types. Meanwhile, for some coaxial cable crimping tool you can change the head to fit the cable specification yourself. It will make you lose weight on tool set but to finish your work perfectly.
