Tools for 25 Pairs Splicing Module Connectors

3M 25Pair Modular Splicing Rig

Quick Details:

1. Name: 25 pair modular tool (3M type)

2. Place of origin: Zhejiang, China

3. Packaging: Metal box/set, Neutral carton/set.

4. CTN: 82x25x25cm

5. GW: 23kg

6. Certificate: ISO9001

Descriptions:

The module pressing‐connecting tool is a necessary tool used to perform press and connection of 25 derection connection, duplicate connection, half‐branch

connection and cross connection modules.The tool is portable and suitably usde to install underground and overhead cables and cross connection boxes of floor or pole‐fixed types both indoors and outdoors.

Details:

Appearance: Smooth surface, no flash, no glitches, no sagging surface coating, spray leak phenomenon, zinc coating line with GB9793 standard. 2. Dimension: Stent tube length: 750 ± 10mm Splice head interior wall width: 166 ± 1mm Beam line frame height: 160 ± 5mm Splice head height: 288 ± 5mm Crimp the inner will face in: 181 ± 1mm Metal box size: 800x200x200mm 3. Beam line stent frame and working conditions should be attached firmly under the three non‐slip phenomenon. 4 pump working pressure: 18‐25Mpa 5 Start the pump handle and flexible, no wiring. 6 should be no leakage pump seal well

Standard configurations:

Wire connecting frame

Hydraulic system

Pressing connecting head

Installation tools

Double connection head

Test clamp, opening pliers

Buttoning up devices

Transversely moving pole

Tools box and test comb

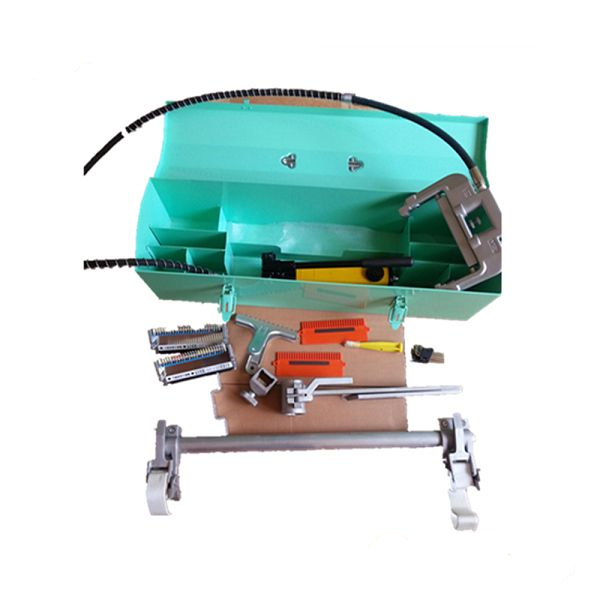

Real shot:
