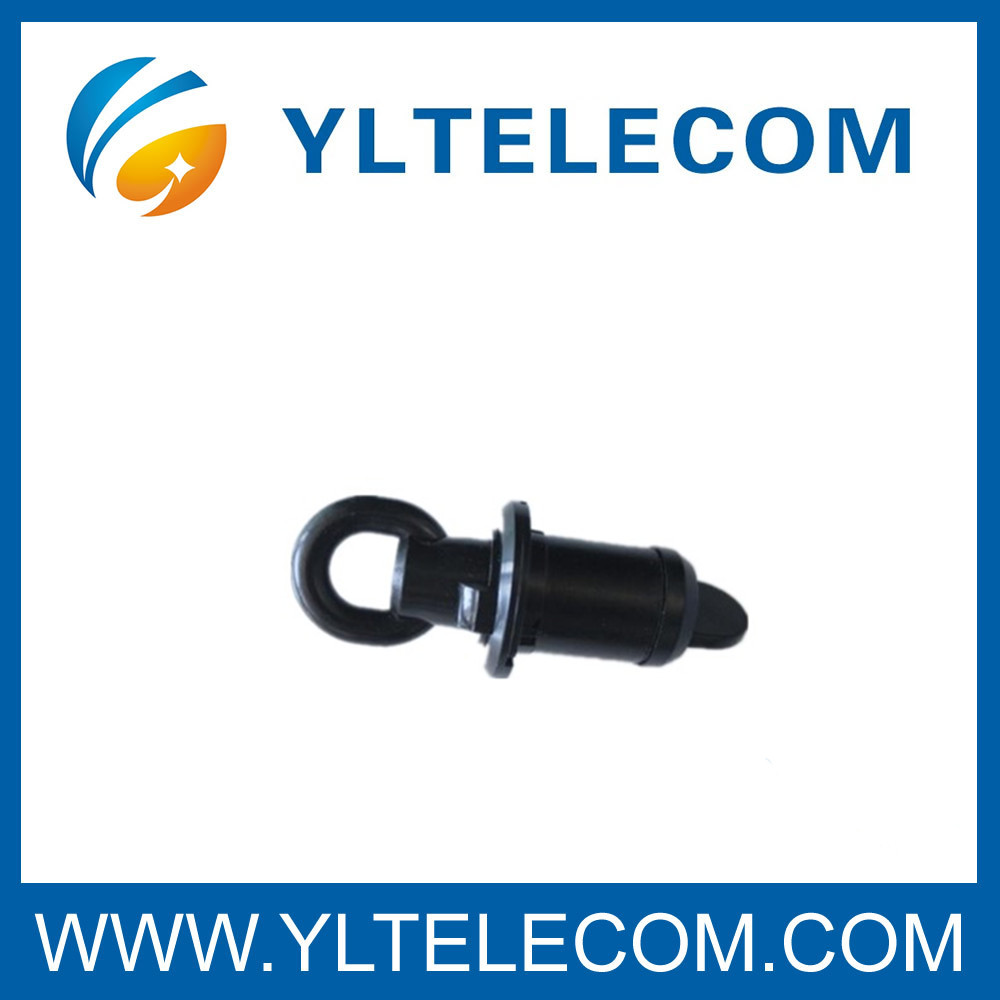

Φ32 / 26mm Fiber Optic Simplex Blank Duct Plugs Fiber Optic Accessories

Φ32 / 26mm Fiber Optic Simplex Blank Duct Plugs Fiber Optic Accessories

Quick Detail:

1. All plastic and rubber construction.

2. For better Corrosion proof

3. And function Water-tight

4. Easy installation and removal

5. Removable and Reusable

6. Blank Duct Plugs Sealing Devices for Ducted Cable Network.Economic,safety and convenient.

7.Duct Size Φ32/ 26mm Other option: Φ34/ 28mm, Φ40/ 33mm, Φ50/ 42mm, Φ60/ 50mm

Description:

Snap Fastener Mechanical Duct Plugs

The service life of cable,splices and manhole hardwares can be increased when contact with hazardous materials reduced.Snap fastener duct plugs expand to fill and seal unused duct entering manholes and other types of telecom structures.

A duct sealing system that protects telecommunications plant investment from water, fire, toxic gases, ice, rodents, smoke, mud and debris.

Features

• Single piece design.

• Quick and easy installation.

• May be re-entered and reused.

• No special tools required for installation.

• No metal parts to corrode or degrade over time.

• No loose parts.

Blank duct plugs effectively seal conduits to reduce the cost of cable placement and maintenance in new underground construction projects and routine work. These plugs are economical because they are removable and reusable.A plug has a dummy rod so it can also be used to close a duct without a cable inside.The plug is divisible so it can be installed after blowing a cable in the duct.

Watertight and airtight
Simple installation around existing cables
Seal all types of inner ducts
Easy to retrofit
Wide cable sealing range
Install and remove by hand

Manufactured from high-impact plastic components, combined with durable elastic gaskets, Blank plugs are corrosion proof and effective as long-term or temporary seals.

Economy and Safety

Both water-tight and gas-tight, Blank duct plugs prevent the flow of water and the costly sedimentation of duct banks and conduit systems while confining problems of dangerous vapors to their source.

Convenience

Each Blank plug is equipped with a rope tie device to allow the securing of pull rope to the plug’s back compression plate. Installers can attach the rope to the back compression plate of the plug and store excess slack rope behind the plug within the conduit system for future use.

TheFTTH Installation Accessories Set concludes:junction box,fiber wall socket(also named Single family unit rosette,SFU rosette),draw hooks,cable clamp,cable wall bushings,cable glands,cable clips,tail duct,cable wiring duct,nail clip.

Cable bushings were originally designed for indoor use on sheet rock.Cable bushings are plastic grommets inserted into a wall to provide a clean appearance for coax cable,fiber optic cable and all cable entry. Cable bushings are a low cost and fast alternative to installing traditional wall plates.They protect the cable from sharp edges when in applications. We offer different shape and size cable wall bushings,wall tubes,fiber inside corner,fiber outside corner,flat elbow,raceway duct fitting,raceway molding,bend radius,tail duct,cable clamp,wiring duct.All used for fiber optic cabling and other wire cabling projects.

Fiber Optic Exterior Slack Storage W/O Holes hidden and organized.Slack storage box is used for exterior slack storage applications using single fiber cable. There are two stackable storage spools that allow storage of multiple single fiber cable drops. Both of these spools are removable. In an instance where only one spool is sufficient, the spool can either be secured at a lower level or can be mounted at an elevation onto the risers off the back of the inside of the box as a spool on the upper level. This allows additional storage under the spool.

Fiber Outside Corner,Outside corners for the self adhesive single fiber molding.

Fiber Inside Corner, Inside corner for the self adhesive single fiber molding.

Fiber Flat Elbow, Flat elbow for the self adhesive single fiber molding.

Self Adhesive Single Fiber Molding

Cable drawing hooks are made of metal,hanging hardware, hard material,with splint type and C type for option.The conduit box,pipe joint box single gang or double gang are made of PC material,fire restardant.

Applications:

May be used to seal all duct entering telecom facilities.

Blank Duct Plugs Sealing Devices for Ducted Cable Network

Telecommunications subscriber loop

Fiber to the home (FTTH)

LAN/WAN

CATV
