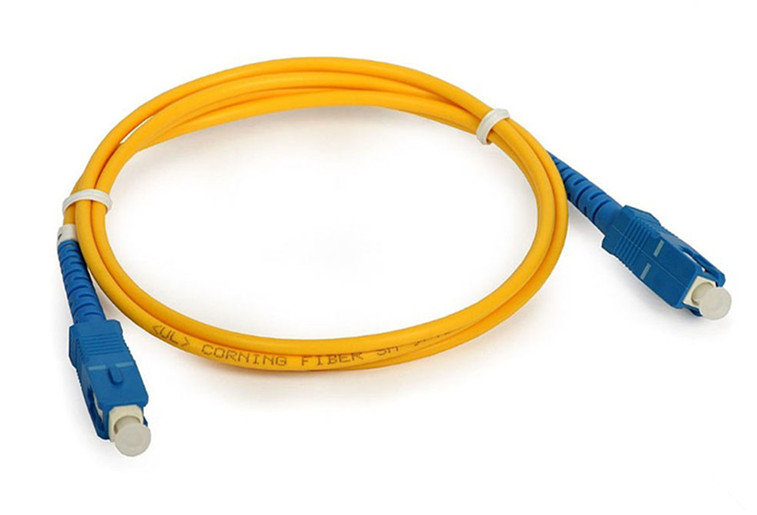

China PC UPC APC Singlemode 9/125 Fiber Optic Patch Cord 1 / 2 / 3 Meter Or Customized,PC UPC APC Singlemode 9/125 Fi...
FTTH Products
(210)
Network Cabling Products
(120)
Fiber cable of SC To FC Fiber Optic Patch Cord Pigtails And Fiber Patch Cord , Bundle Ribbon Fiber Patch Cord are designed and manufactured in ISO9001 registered facility.
The product range covers both single mode and multimode pigtails and pigtails which are fully qualified to RoHS standards.
Assemblies are available in all major fiber optic connector types; a range of cable color options available.
Quick Detail:
Place of Origin: Ningbo China (Mainland)
Brand Name: SINDA
Name: sc outdoor fiber patch cord customized
Color: Various
Connector: SC/ST/FC/LC/DIN/E2000/MTRJ
Type: APC/UPC
Model: single mode and multi mode
Length: customer order
Sheath material: pvc/lzsh
Cable demeter: 0.9/2.0/3.0mm
Description:
Various connector type available
Low back reflection loss
Compact size
Low insertion loss
High Return Loss
Diameter Φ 0.9mm, Φ 2.0mm, Φ 3.0mm Fiber Available
Single-mode Fiber or Multi-mode Fiber Available (For Simplex or Duplex)
Applications:
Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS (fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitted equipment
Defense combat readiness
Specifications :
| Item | Unit | FC, SC, LC | ST, MU | MTRJ , MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | MM | ||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | UPC | ||
| Insertion Loss ( typical) | dB | ≤ 0.3 | ≤ 0.2 | ≤ 0.3 | ≤ 0.2 | ≤ 0.3 | ≤ 0.2 | ≤ 0.2 | ≤ 0.3 | ≤ 0.2 | ≤ 0.2 | ≤ 0.3 | ≤ 0.3 |
| Return Loss | dB | ≥ 45 | ≥ 50 | ≥ 60 | ≥ 30 | ≥ 45 | ≥ 50 | ≥ 30 | ≥ 45 | ≥ 50 | ≥ 35 | ≥ 55 | ≥ 75 |
| Operating wavelength | nm | 1310, 1510 | 1310,1510 | 1310,1510 | 1310,1510 | ||||||||
| Exchangeability | dB | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ||||||||
| Vibration | dB | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ||||||||
| Operating temperature | °C | -45 ~ +75 | -45 ~ +75 | -45 ~ +75 | -45 ~ +75 | ||||||||
| Storage temperature | °C | -45 ~ +85 | -45 ~ +85 | -45 ~ +85 | -45 ~ +85 | ||||||||
| Cable diameter | mm | Φ3.0 , Φ2.0, Φ0.9 | Φ3.0 , Φ2.0, Φ0.9 | Φ3.0 , Φ2.0, Φ0.9 | Φ3.0 ,Φ2.0, Φ0.9 | ||||||||
