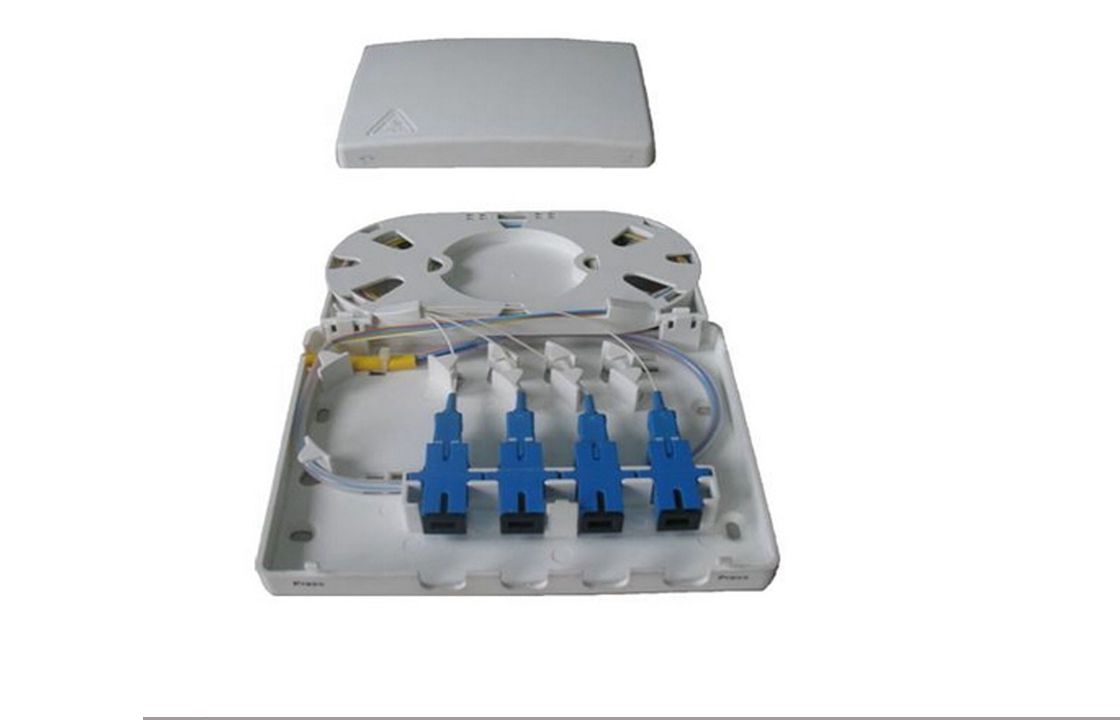

SC SM 9 / 125 Pigtails packed with 4 port terminal box full assembly FTTH Box

Product Name: SC SM 9 / 125 Pigtails packed with 4 port terminal box full assembly FTTH Box
Model NO.: YJ-031
Origin: China
Brand Name: YJ
Delivery Time: 10 Days
Minimum Order: 1 Bag
Supply Ability: 10000M/day
Quality System Certification: ISO,RHOS,UL,CE

Product Details: SC SM 9 / 125 Pigtails packed with 4 port terminal box full assembly FTTH Box

We supply SC SM 9 / 125 Pigtails packed with 4 port terminal box full assembly FTTH Box with very competitive prices, every single piece of SC SM 9 / 125 Pigtails packed with 4 port terminal box full assembly FTTH Box is tested in the workshop before delivering to the customer.

Fiber cable of SC SM 9 / 125 Pigtails packed with 4 port terminal box full assembly FTTH Box are designed and manufactured in ISO9001 registered facility.

The product range covers both single mode and multimode pigtails and pigtails which are fully qualified to RoHS standards.

Assemblies are available in all major fiber optic connector types; a range of cable color options available.

Quick Details :

Fiber Mode : SM

Connector : SC

Available Length : 1.5MM

Jacket Colors : White

Ferrule : PC

Insertion Loss : ≤0.2dB

Specification according to customer`s requests

Both OEM and ODM are availables

Description:

Adapt to all type of connector

With a fan out kit at the junction of fibers

Applicable Connector: FC, SC, ST, LC-

Cable material: PVC, OM1, OM2 or OM3 optional

Single mode or multi mode

Cable size: Φ 0. 9mm, Φ2. 0mm, Φ3. 0mm

Applications:

Optical fiber communications system

Optical fiber access networks

Optical fiber CATV

Optical fiber test equipements

Optical fiber data communication

LAN

Specification :

Type	Standard,Master
Style	LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
Fiber	Singlemode/Multimode 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3
Cable	Simplex, Duplex Φ3.0mm, Φ2.0mm, Φ0.9mm PVC or LSZH
Polishing Manner	UPC,SPC,APC (8°& 6°)
Insertion Loss	≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750
Return Loss (Singlemode)	UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750
Repeatability	±0.1dB
Operating temperature	-400C to 850C
Geometry Requirement ( Singlemode)	Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1

Competitive advantages:

Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.

All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.

We wish to create better future of optical communication industry jointly with both new and existing customers.
