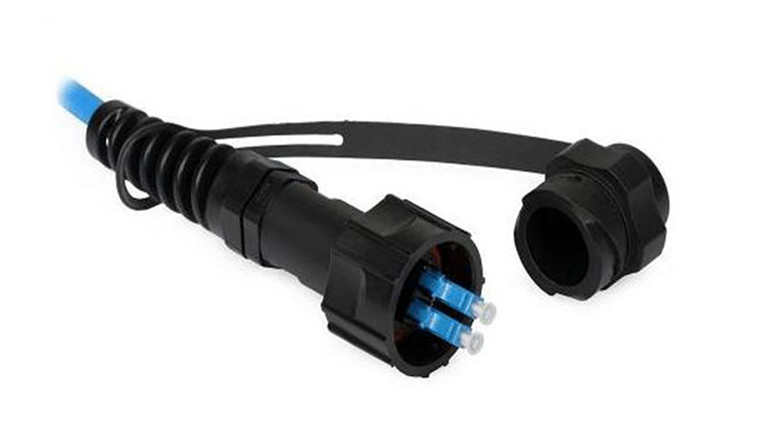

FullAXS fier optic patch cord with 4.8mm cable SM bend insensitive fiber / IP67 / 4G

Product Name: FullAXS fier optic patch cord with 4.8mm cable SM bend insensitive fiber / IP67 / 4G
Model NO.: YJ-016
Origin: China
Brand Name: YJ
Delivery Time: 10 Days
Minimum Order: 1 Bag
Supply Ability: 10000M/day
Quality System Certification: ISO,RHOS,UL,CE

Product Details: FullAXS fier optic patch cord with 4.8mm cable SM bend insensitive fiber / IP67 / 4G

We supply FullAXS fier optic patch cord with 4.8mm cable SM bend insensitive fiber / IP67 / 4G with very competitive prices, every single piece of FullAXS fier optic patch cord with 4.8mm cable SM bend insensitive fiber / IP67 / 4G is tested in the workshop before delivering to the customer.

Fiber cable of FullAXS fier optic patch cord with 4.8mm cable SM bend insensitive fiber / IP67 / 4G are designed and manufactured in ISO9001 registered facility.

The product range covers both single mode and multimode pigtails and pigtails which are fully qualified to RoHS standards.

Assemblies are available in all major fiber optic connector types; a range of cable color options available.

Quick Details :

Outer cable diameter: 4.8mm , 5.5mm, 7mm

Type: LC with full ceramic ferrules

Description:

Material mechanism: bayonet style locking

Housing material: high performance plastic

Applications:

Optical fiber communications system

Optical fiber access networks

Optical fiber CATV

Optical fiber test equipements

Optical fiber data communication

LAN

Specification:

ODC Patch Cord Cable Functional Parameter
Item		Description	Standard
Cable Model		GYFJH-4B1
Number Optic-cable Core		4
Weight Kg/km		45.3
Outside Dia. mm		Φ7.0±0.2
Outer Sheath	material	LSZH	YD/T 1113-2001
	color	BLACK
	thickness	1mm
Tight buffer	material	FRP
Tight buffer	Dia.mm	Φ1.0±0.1
Subunit	Quantity(pcs)	2
	Sheath Dia.	Φ2±0.1mm
	Sheath Material & Color	LSZH & yellow
	Strength	aramid fiber
	Mark Unit	Differ A and B fiber within 80mm	GB/T 6995.2
Fiber core	Fiber Type	G.652D
	sheath color	white
	Sheath material	LSZH
	Out-Dia fiber for Tight layer	0.90±0.05 mm
	Fiber specification	9/125(G652D)
Filler	Filler number	2
	Sheath Dia.	Φ2±0.1mm
	Sheath material & color	LSZH & black
	filler	aramid fiber
Allowable Tension		Short term ≥500N
Allowable Tension		Long term ≥300N
inflaming retarding Class		Confirm to IEC60332-3C
Mini Bending radius		10D
Fiber Cable Printing		Manufacturer +fiber cable model + fiber cable transmission model + standard +LSZH + Production Date
Working life		≥25years
*all materials confirm to RoHS

ODCFiber Patch Cord Connector Parameter
Insertion loss		≤0.3dB
Typical value		≤0.2
Return loss UPC		≥50dB
Return Loss APC		≥65dB
Apex offset		<50μM
Fiber height		+100 to -100nm, +50 to -100nm
Angles		8, ±0.5°/8, ±0.5°
Repeatability		≤0.1dB
Interchangeability		≤0.2dB
Tension performance		compliant with IEC standard
Operating temperatures		-40 B53to 85°C
