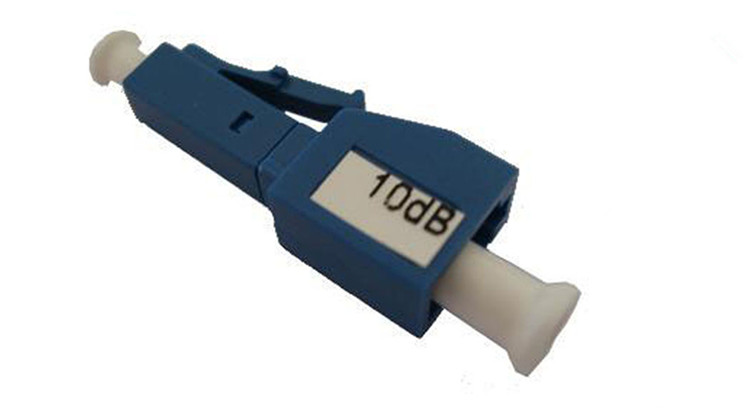

LC 10DB Fiber Optic Attenuator , Optical Fiber Attenuators GR-326

Operation Wavelength :1310/1550nm

Attenuation :1,2,3,5,10,15,20,30dB or Optiona

Attenuation Accuracy :±0.5dB

Temperature : -40~+85C

Durability:  More than 1000 times

Place of Original : Ningbo,China

Description:

Simplex and duplex panel cutouts

Panel clip for easy installation

Increase panel density and quick plug in installation

Available in several standard colors

Meet bellcore GR-326 standard

Insertion loss: SM<0.3dB, MM<0.5dB

Durability (500 Mating): 0.2dB Max Increase

Operating temperature: -40°C~85°C

Storage temperature: -40°C~85°C

Applications:

CATV Fiber Optic Sensor

Fiber to Home

Telecommunication Networks

Local Area Networks(LANs)

Test Equipment

Specifications :
