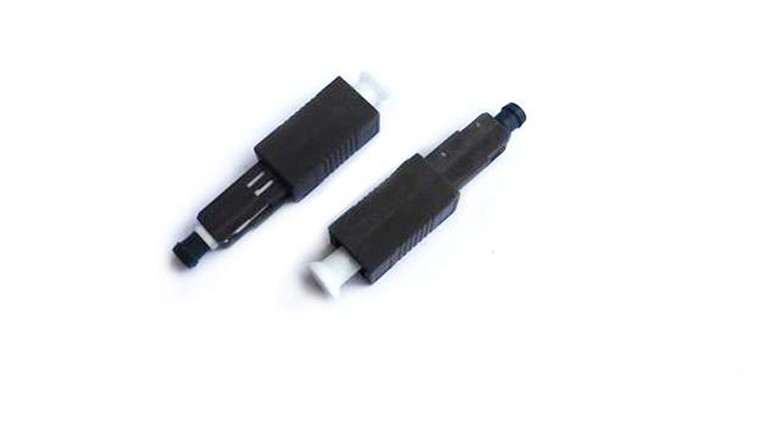

FC SC ST LC MU Optical Fiber Attenuator Simplex and duplex for Wide Area Networks

Product Name: FC SC ST LC MU Optical Fiber Attenuator Simplex and duplex for Wide Area Networks
Model NO.: YJ-U011
Origin: China
Brand Name: YJ
Delivery Time: 10 Days
Minimum Order: 1 Bag
Supply Ability: 10000M/day
Quality System Certification: ISO,RHOS,UL,CE

Product Details: FC SC ST LC MU Optical Fiber Attenuator Simplex and duplex for Wide Area Networks

Our Zirconia / PB Fiber Optic Attenuator for Multimedia Data processing networks

In a very good prices, every single piece of Zirconia / PB Fiber Optic Attenuator is tested in the workshop before delivering to the client.

The Attenuator are fully qualified to RoHS standards and ISO9001:2008.

Low back reflection and Low PDL
High precision attenuation value
Precision control of attenuation range
Wide attenuation range
Precision ceramic ferrule
FC, SC, ST, LC … optional
Plastic or metal housing material
Place of Original : Ningbo,China

Description:

Simplex and duplex panel cutouts
Panel clip for easy installation
Increase panel density and quick plug in installation
Available in several standard colors
Meet bellcore GR-326 standard
Insertion loss: SM<0.3dB, MM<0.5dB
Durability (500 Mating): 0.2dB Max Increase
Operating temperature: -40°C~85°C
Storage temperature: -40°C~85°C

Applications:

EDFA, DWDM, Long-haul
Wide-Area Networks
Telecommunication networks
Gigabit applications ( ATM,Ethernet )

Specifications :

Item	Specification
	PC	UPC	APC
Operating Wavelength (nm):	1310 1550
Return Loss (dB):	≥50	≥55	≥60
Attenuator Value:	According to custom request make 1—25dB
Maximum Optical Input Power:	200mW
Bellcore Compliant:	Wavelength Independent (DWDM)
Operating Temperature:	-40--+85°C
Attenuation Accuracy:	+/-0.5 (1-10) +/-1.0 (11-30)
Durability (well over 100mw):	Simple and Reliable Structure
Storage Temperature:	-40--+85°C
