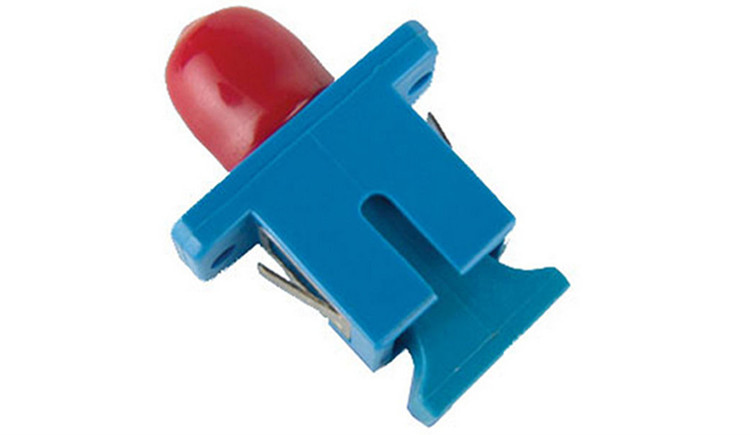

High Performance Fiber Optic Adapter Hybrid Attenuator SM / MM

Product Name: High Performance Fiber Optic Adapter Hybrid Attenuator SM / MM
Model NO.: YJ-U002
Origin: China
Brand Name: YJ
Delivery Time: 10 Days
Minimum Order: 1 Bag
Supply Ability: 10000M/day
Quality System Certification: ISO,RHOS,UL,CE

Product Details: High Performance Fiber Optic Adapter Hybrid Attenuator SM / MM

Our Zirconia / PB Fiber Optic Attenuator for Multimedia Data processing networks

In a very good prices, every single piece of Zirconia / PB Fiber Optic Attenuator is tested in the workshop before delivering to the client.

The Attenuator are fully qualified to RoHS standards and ISO9001:2008.

Insertion Loss::	<0.2dB	Storage Temperature::	-40 Degree To +85 Degree
Color::	Plastic/Blue	Mode Type::	SM Or MM
Polishing::	PC, UPC, APC	Operating Temperature::	-40 To +85℃

High Performance Fiber Optic Adapter Hybrid Attenuator SM / MM

Features:

1. All standard and hybird types are offered in both multimode and single mode construction.

2. High performance interconnections offer very low insertion loss.

3. Ceramic (Zirconia)or low -cost Phosphor Bronze alignment sleeves.

4. Customer designed specification.

5. Compact packing.

Parameter:

1, Compliant with Bellcore GR-326

2, Compliant with Respective IEC standard

3, Compliant with ROSH

4, Insertion Loss:<0.2dB

5, Durability :0.2dB Max Increase

6, Withdrawal Force(g/f):100-300

7, Operating Temperature:-40 to +80degree Celsius

Specifications:

Singlemode Multimode
Insertion loss: <0.2dB <0.3dB
Return loss: ≥50dB
≥60dB(APC)
Durability: <0.2dB typical change,500 mating
Operating Temperature:-40 to +75°C

Singlemode Multimode

Insertion loss: <0.2dB <0.3dB

Return loss: ≥50dB

≥60dB(APC)

Durability: <0.2dB typical change,500 mating

Operating Temperature:-40 to +75°C

Competitive advantages:

Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.

All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.

We wish to create better future of optical communication industry jointly with both new and existing customers.
