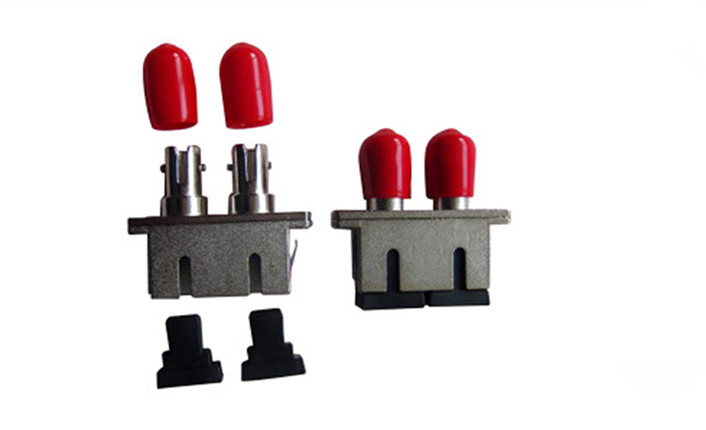

SC To ST Hybrid Optical Adaptor Duplex Or Simplex Zirconia Ceramic Single mode

Product Name: SC To ST Hybrid Optical Adaptor Duplex Or Simplex Zirconia Ceramic Single mode
Model NO.: YJ-A010
Origin: China
Brand Name: YJ
Delivery Time: 10 Days
Minimum Order: 1 Bag
Supply Ability: 10000M/day
Quality System Certification: ISO,RHOS,UL,CE

Product Details: SC To ST Hybrid Optical Adaptor Duplex Or Simplex Zirconia Ceramic Single mode

Our Zirconia / PB Fiber Optic Attenuator for Multimedia Data processing networks

In a very good prices, every single piece of Zirconia / PB Fiber Optic Attenuator is tested in the workshop before delivering to the client.

The Attenuator are fully qualified to RoHS standards and ISO9001:2008.

Model Number: SC/ST Adapter

Usage: optical fiber

Type: simplex, duplex, quad

Connection: SC ,ST

Material: Metal

Mortise: Phosphor bronze

Description:

This SC (male) to ST (female) duplex adapter is provided as an optional accessory to give users of MOXA industrial Ethernet switches more fiber optic connection options. Simply plug the adapter directly into the SC connector of any MOXA industrial Ethernet switch to convert the original SC connector into an ST connector. This allows you to use an ST connector with any MOXA industrial Ethernet switch, but without the need for an extra patchcord.

Applications:

Communication rooms

FTTH (Fiber to The Home)

LAN (Local Area Network)

FOS (fiber optic sensor)

Fiber Optic Communication System

Optical fiber connected and transmitted equipment

Defense combat readiness

Specifications :

Item	Mode Type	PC	SPC	UPC	APC
Insertion Loss	SM	≤0.25dB	≤0.20dB	≤0.20dB	≤0.20dB
Insertion Loss	MM	≤0.30dB	≤0.20dB	≤0.20dB	≤0.30dB
Return Loss	SM	≥45dB	≥50dB	≥55dB	≥65dB
Return Loss	MM	≥35dB	≥35dB	≥35dB	≥35dB
Repetition Test		Additional Loss≤0.1dB,Reture Loss Variability<5dB
Temperature Stability(-40°C~85°C)		Additional Loss≤0.2dB,Reture Loss Variability<5dB
Operating Temperature		-40°C~+75°C
Storage Temperature		-40°C~+85°C
-Option:CableDiameters;0.9,2mm,3mm&others
-Type:simplex,duplex,Matrial Type:pvc,hytrel,LSZH,OFNP,OFNR

Competitive advantages:

Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.

All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.

We wish to create better future of optical communication industry jointly with both new and existing customers.
