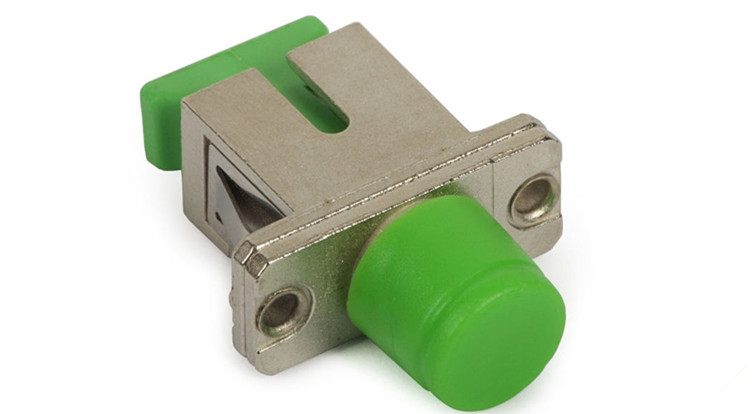

SC / FC Hybrid fiber optic data transmission Adapter with Ceramic / P.B Sleeve

Product Name: SC / FC Hybrid fiber optic data transmission Adapter with Ceramic / P.B Sleeve
Model NO.: YJ-A004
Origin: China
Brand Name: YJ
Delivery Time: 10 Days
Minimum Order: 1 Bag
Supply Ability: 10000M/day
Quality System Certification: ISO,RHOS,UL,CE

Product Details: SC / FC Hybrid fiber optic data transmission Adapter with Ceramic / P.B Sleeve

Our Zirconia / PB Fiber Optic Attenuator for Multimedia Data processing networks

In a very good prices, every single piece of Zirconia / PB Fiber Optic Attenuator is tested in the workshop before delivering to the client.

The Attenuator are fully qualified to RoHS standards and ISO9001:2008.

Model Number : SC-FC

Sleeve Type : Ceramic / P.B

Insert loss: ≤0.2dB

Interchange:≤0.1

Insert degree:>1000

Pull strength:0~15Kg

Description:

Accurate dimensions

Good interchangeability

Good repeatability

Good durability

Good temperature performance

Applications:

Telecommunication Networks

CATV Networks

Data communication Networks

Instrumentation

LAN

Specifications :

Optical Parameter	W/ Japanese Ceramic Sleeve	W/ Chinese Ceramic Sleeve	W/ P.B Sleeve
Insertion Loss	<0.10dB	<0.20dB	<0.30dB
Durability	<0.10 dB typical change, 1000 times	<0.20 dB typical change, 1000 times	<0.30 dB typical change, 500 times
Operating Temp.	-20 ~+ 75°C
Storage Temp.	-40 ~+ 85°C

SC / FC Hybrid fiber optic data transmission Adapter with Ceramic / P.B Sleeve

Competitive advantages:

Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.

All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.

We wish to create better future of optical communication industry jointly with both new and existing customers.
