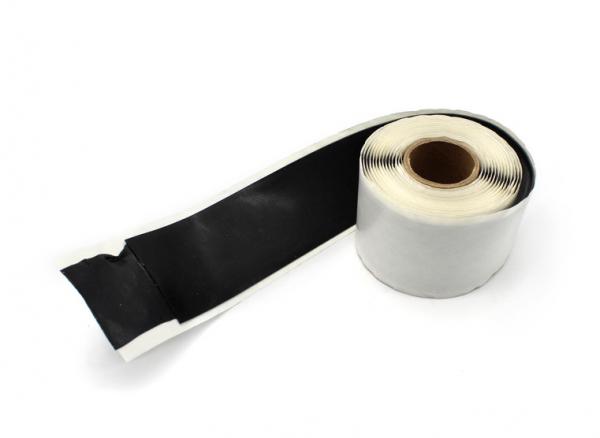

Self–fusing Rubber Electrical Insulating and Sealing Tape 3M 2228 Rubber Mastic Tape RoHS

1. Ethylene propylene rubber (EPR) backing coated

2. Highly resistant to weathering, salt water, alkalis and acid.

3. Application for quick application build–up

4. Electrical insulating and moisture sealing applications

5. Used in both indoor and outdoor plant

6. Made of black,rubber and Mastic

7. RoHs

Description:

Rubber Mastic Tape

Self-fusing rubber based compound bonded to a moisture sealing mastic; all weather. Insulate, pad and seal bus bar and splice connections.

2228 can be used on copper or aluminum conductors rated at 90°C, with an emergency overload rating of 130°C. It offers excellent resistance to moisture and ultraviolet exposure and is intended for both indoor and weather exposed outdoor applications.

Vinyl Mastic Tape(VM Tape)

Vinyl Mastic Tape is a rubber based mastic laminated to an all-weather 7 mil (0.18 mm) vinyl, which provides double duty protection in one wrap. Vinyl Mastic (VM) tape seals out moisture and protects against corrosion without the need for heating tools or using multiple tapes. VM tape is two tapes in one (vinyl and mastic) and specifcally designed for cable sheath repair, splice case and load coil case protection, auxiliary sleeve and cable reel end sealing, drop wire insulating, conduit repair and protection of CATV components as well as other general taping applications.

Vinyl Plastic Tape

It is made of a PVC matte film coated with a non-corrosive adhesive on one side, which can resist high voltage and cold well. It is a low lead and low cadmium product. Application for electrically insulation in wires and cables, especially for degaussing coils.

Scotch Tape 88T is a flame-retardant and non-corrosive tape that has good elongation properties for superior conformability over the most irregular splices. This tape is highly resistant to weathering, salt water, alkalis and acid. The balanced electrical and physical properties of the tape offer the ultimate in insulating, protecting and holding. The high dielectric tape is suitable for splicing, general insulating and taping end cap applications.

Mastic Sealing Tapes

The 2900-R designed for telecommunication and electric sealing use.It works excellent with All the Dome closures for fiber optic cabling,with feature waterproof.It can help with further protection for the products,and keep good performance for communication.

Tape measures 1-1/2-in x 5-ft

RoHS Compliant

Armorcast Structural Material Bulk 4560

Armorcast structural material is a flexible fiberglass knit fabric strip saturated with black resin syrup. No heat is required in the installation process, just water. It forms a tough durable covering that cures in just 20 minutes.

For use on pressurized, non-pressurized, polyethylene or lead sheathed cable.
Product Number: YJ-4560

Size: 4inch*15feet (10.2cm*4.6m)

Application:

Access Network: FTTH/FTTB/CATV,‎ Access Network: xDSL,‎ Long-haul/Metro Loop Network: Outdoor repair and sealing
