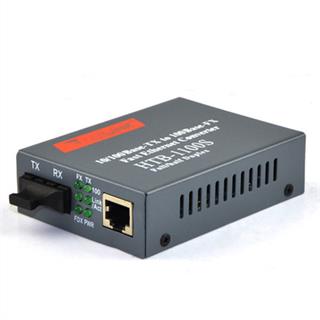

20KM Fiber Optic Media Converter Single-mode Dual-Fiber

20/40/60/80KM Fiber Optic Media Converter Single-mode Dual-Fiber

YoujetTelecom  Fiber Optic Media Converter Series 10/100M Single-mode Dual-Fiber Converter is the conversion equipment of Ethernet optical-electronic signals between 10/100M UTP interface (TX) and 100M Fiber interface (FX). The traditional 10/100M Fast Ethernet can be extended to the distance of 90km through Single Optical Fiber link.  It must be used in couples, because the transmitted optical differs from the receive optical in wavelength. 6 Group LED indicated lights could fully monitor the working conditions of Converters. It is easy for end-users to observe the conditions of network. The Series product with reasonable price is especially designed for network end-users.

Feature


Auto negotiation function allows UTP port to select the transmission mode of 10/100M and Full Duplex or Half Duplex.

UTP port supports MDI/MDI-X auto crossover.

Multiple optical interface to be chosen: SC,ST or FC,singlemode/multimode

Supporting 1552 Byte packet

Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.

Design of internal or external power supply for selection by users

Specification


Operating standards: IEEE802.3u, 10/100Base-TX and 100Base-FX

MAC address table: 1K

Connector:

UTP: RJ-45 10/100Mbps;

Fiber: ST/SC/FC 100Mbps

Cable:

UTP: Cat. 5 UTP (the max distance up to 100m)

Fiber (Multimode): 50/125, 62.5/125μm(the max distance up to 2km or 5km)

Fiber (Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 20 -120km)

Flow Control

Full Duplex: Supporting standard IEEE802.3x

Half Duplex: Backpressure

LED: Power, FX FDX, FX Link/Act, TX 100, TX FDX, TX Link/Act.

Power: AC 110V-240V to DC 5V; DC 48V to DC 5V.

Ambient Temperature: 0 ℃ ~ 70 ℃

Humidity: 5% ~ 90%

Dimensions:

Internal power: 30×110×140mm

External power: 26×70×93mm
