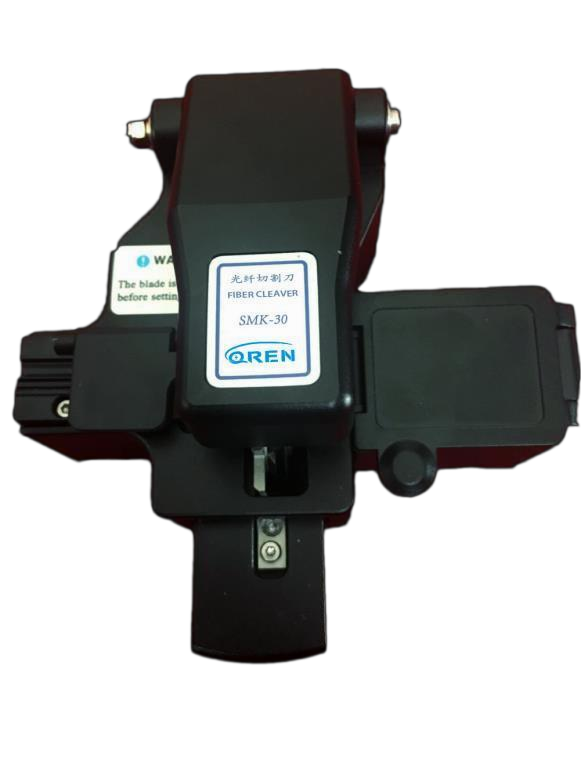

Hardware Networking Tools Fiber Optic Cleaver Optical cutter

High Precision Metal Hardware Networking Tools Optical Fiber Cleaver Fiber Optic Cutter for FTTH Project

Product description

1.Professional design modeling simple and smooth, simple operation can be cut in one step on the palm of your hand.
2.Aluminum alloy after annealing. Precision machining, subsequent use of stress-free deformation.
3.The blade life ≥ 48000 times, fiber cutting end angle of about 0.3°, continuous fiber index ≤ 0.02db.
4.Easy to adjust the blade height, just loosen the self-lockingscrews.
5.Compact, cleaver type
6.The blade replacement easy, without removing the pedestal.
7.High precision and speed
8.Allow the cut of the required cutting lengths

Basic Specifications

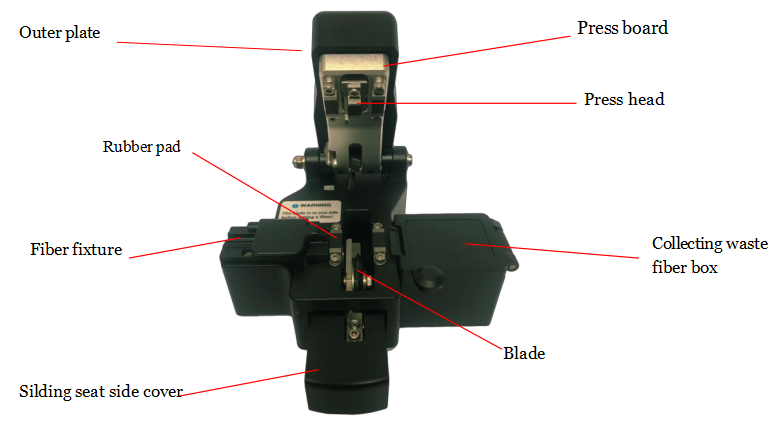

Structure

Operating Method

1.Hold the outer plate, push down the locking block to lift the rear end of the outer plate of the lock, open the outer plate. At the same time, the optical fiber plate is opened, and the sliding seat is pushed to the locked position. (Press and hold the press plate, the locking block is pushed up to the limit position, and the outer press plate is released first, then the cutting knife can be locked. )

2.With stripping fiber fiber coating stripping pliers reserved bare fiber length of 20-30mm, with cotton wool dipped in alcohol or tissue wrap fiber, optical fiber and then wipe clean. Rub a cotton wool or tissue, do not use the same cotton wool or tissue to wipe second (Note: Please use a purity greater than 99% alcohol);

3.The visual alignment of fiber coating edge cutter ruler (10-16cm) appropriate scale, left the fiber into the fiber guide groove straight bare fiber required pressure on the rubber mat, One end of the optical fiber can be touched to the roller in the receiving device.

4.Close the clamp cover, press the external plate, and then open the outer plate, complete the cutting knife.

5.With his left hand while his right hand to open the clamp pinch fiber cover, carefully remove the chopped fiber end face, NOTE: Do not touch the clean fiber cross-section and its objects. 6, Troubleshooting, causes bad cut might be:
A, Fiber is not straight on the fiber-optic pressure pad;
B, The blade height is too high ;
C,The blade and the pressure pad dust and other foreign matter

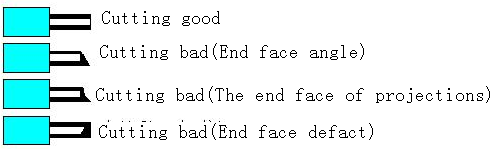

The causes of poor cutting may be due to the following reasons:
1. the fiber is not placed straight on the cutting knife (please put the fiber directly).
2. blade position is too high (please adjust the blade height)
3. residual trash on optical fiber control block (cleaning clip).
4. the blade is covered with dust and other foreign objects (please clean the blade).
5. optical fiber is covered with dust and other foreign matters (please remove the optical fiber covering layer and clean bare fiber parts).
