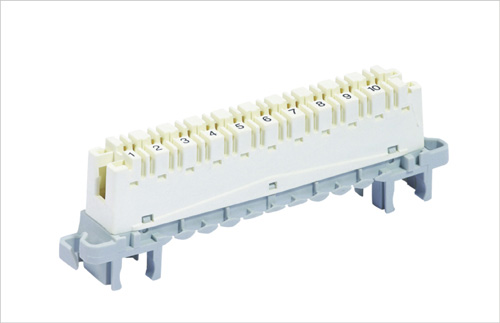

10 Pair Profile High Band Module

High Band Module Cat5e Profile mount type 10Pair high speed data and voice

Quick Detail:

1, Material: PBT or ABS(UL94V-0)

2, Contact: Phosphor Bronze

3, Silver Plating: 0.5 um1.25 um5 um

4, Can be installed on krone type stainless steel back mount frames

5, High band module for back mount and profile mount type

6, for mounting on MDF,racks,profile bracket,indoor and outdoor distribution box,cross connection cabinets.

Description:

This module is desired for setting up unshielded distribution fields for 4 wires and 8 wires cables.It satisfies cat.5(e) with EN50D3/ISO110601.

10 Pair Cat5e Module With Wire Guide Superior high speed data and voice cross connect modules. Available in 8 pair and 10 pair disconnection versions, which enable high LAN and WAN systems maximum headroom in transmission performance .Back mount type and profile type optional.

ORDERING INFORMATION

Item no. Description

YJ-4006-8 8pair high band module,back mount type
YJ-4006-10 10pair high band module,back mount type
YJ-54685061-00 10pair high band module,profile type

We offer various modules in telecommunication application, the products includes 5pair LSA type connection and disconnection module, 8pair and 10 pair connection disconnection krone module,back mount function and profile function, switching module,10pair Earth connection module, high band modules, 3M type quick connect module, 25pair splicing module, 10pair STG module, Subscriber terminal block, 50pair and 100pair krone block tag, back-mount frames, and other related accessories like LSA patch cord for disconnection and switching modules,earth bar,dust cover,label holder and so on.

The disconnection type CT module have provision of testing the electrical parameters of the exchange and distribution sides by insertion of test plug without actually disconnecting the jumper wire or the cable from the termination module.

The module housing material we mainly offer with imported GE PBT and ABS(UL94V-0).Both material we will use new rall material but not recycling material(first recycling or second recycling).So we can offer good performance modules.You can get very cheap products in the market but they are mainly made of such recycling material PBT or ABS.

Applications:

High speed LAN and WAN systems,used to connect the Telecom and Data wires with punch down tools.

Specifications :
